PDP1-S5-S3-M - CUI Inc.

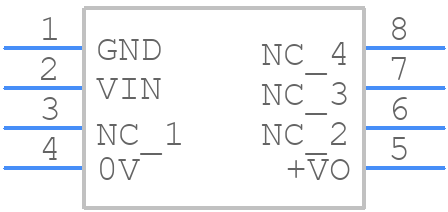

PDP1-S5-S3-M Details

• Manufacturer Part Number:

  PDP1-S5-S3-M

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Package Description:

  PACKAGE-8

• ECCN Code:

  EAR99

• Date Of Intro:

  2020-04-16

• Manufacturer:

  CUI Inc

• YTEOL:

  6.2

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL, EN

• Efficiency (Main Output):

  74%

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  R-PDMA-G8

• Length:

  13.2 mm

• Line Regulation-Max:

  1.5%

• Load Regulation-Max:

  20%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.303 A

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.0265125 Vrms

• Seated Height-Max:

  7.75 mm

• Surface Mount:

  YES

• Switching Frequency-Max:

  270 kHz

• Technology:

  HYBRID

• Terminal Form:

  GULL WING

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  1 W

• Trim/Adjustable Output:

  NO

• Width:

  8.5 mm
