A good PCB layout for the PDQ10-Q24-S12-D would involve keeping the input and output capacitors close to the module, using a solid ground plane, and minimizing the length of the input and output cables.
To ensure reliable operation in high-temperature environments, make sure to follow the recommended derating curves, provide adequate airflow, and consider using a heat sink or thermal interface material to reduce the module's operating temperature.
Exceeding the maximum input voltage can cause permanent damage to the module, including damage to the internal components, reduced lifespan, or even complete failure. It's essential to ensure that the input voltage remains within the specified range.
Yes, the PDQ10-Q24-S12-D can be used in a redundant or parallel configuration, but it's essential to follow the manufacturer's guidelines and ensure that the modules are properly synchronized and configured to avoid any potential issues.
The PDQ10-Q24-S12-D is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. To minimize EMI and RFI, ensure that the module is properly shielded, and follow good PCB layout practices, such as keeping sensitive components away from the module.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDQ10-Q24-S12-D Overview

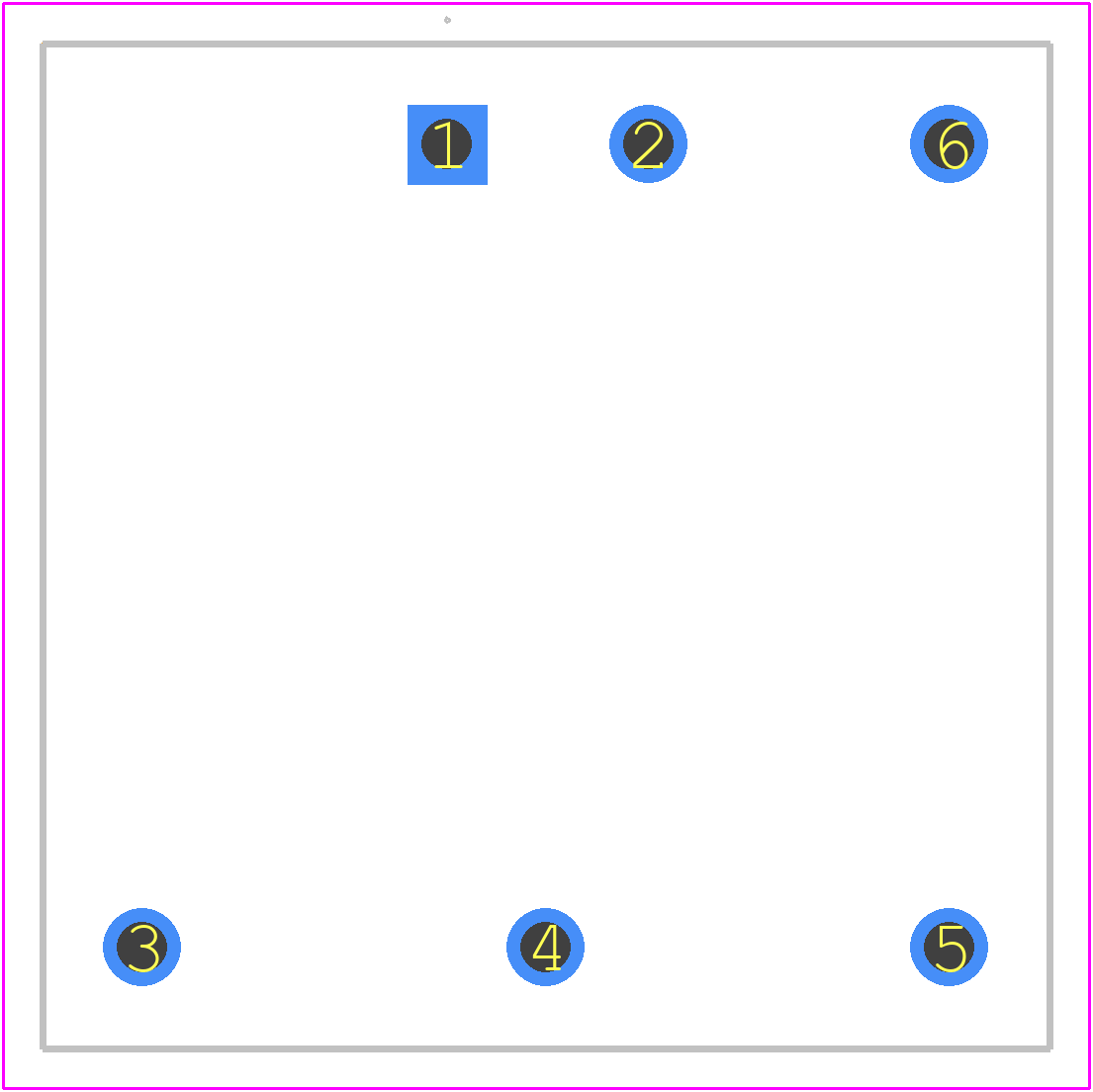

Use the download button to access the PDQ10-Q24-S12-D schematic symbol, PCB footprint, and 3D model.
