PDQ10-Q24-S5-D footprint, schematic symbol and 3D model by CUI Inc.

Symbol

click to zoom

PCB Footprints

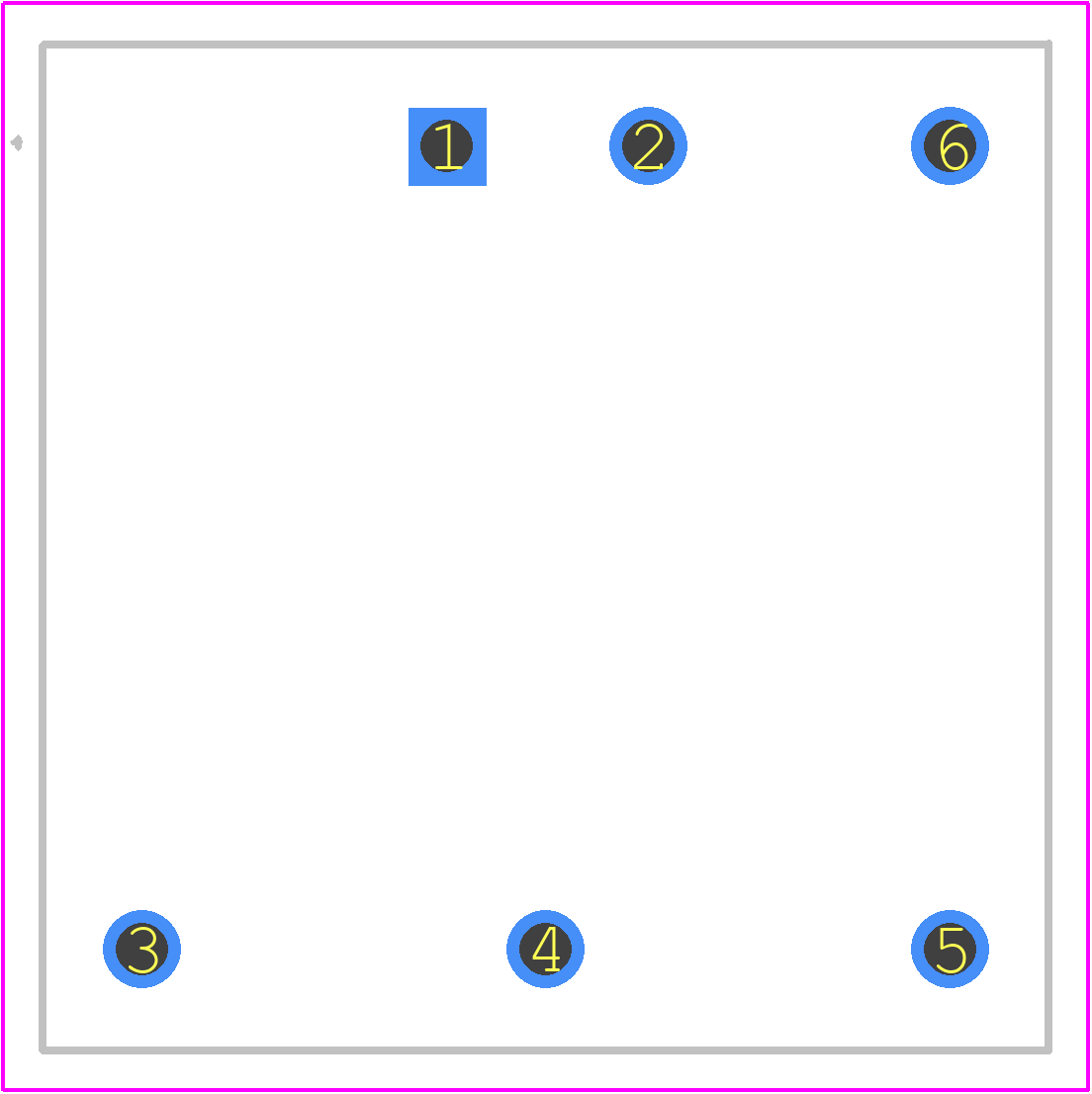

PDQ10-Q24-S5-D - CUI Inc. PCB footprint - Other - Other - PDQ10-Q24-S5-D-2

click to zoom

3D Models

PDQ10-Q24-S5-D - CUI Inc. - 3D model - Other - PDQ10-Q24-S5-D-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PDQ10-Q24-S5-D
Part Number PDQ10-Q24-S5-D
Manufacturer CUI Inc.
Pin Count 6
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - PDQ10-Q24-S5-D-2
Released Date Oct 6, 2022
Last Modified Date Apr 7, 2025 11:56 AM UTC
Pinout / Pin List Click Here (Member Only)

PDQ10-Q24-S5-D Details

Manufacturer Part Number:
PDQ10-Q24-S5-D
Brand Name:
CUI Inc
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
DMA,
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
Manufacturer:
CUI Inc
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
S-XDMA-T6
Length:
25.4 mm
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
71 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
5.5 V
Output Voltage-Min:
4.5 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
THROUGH-HOLE
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
10 W
Trim/Adjustable Output:
YES
Width:
25.4 mm

PDQ10-Q24-S5-D Frequently Asked Questions (FAQs)

A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the tab of the device, and to use thermal vias to dissipate heat to the other layers of the PCB.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the time the iron is in contact with the device.
The maximum allowed voltage derating for this device is 80% of the maximum rated voltage, as specified in the datasheet. Exceeding this derating may affect the device's reliability and lifespan.
While the device is designed to operate in a variety of environments, it's recommended to take precautions when using it in high-humidity environments. Consider applying a conformal coating or using a moisture-resistant package to minimize the risk of moisture-related failures.
Store the device in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -20°C to 30°C, and the recommended storage humidity is 60% RH or less.
