A good PCB layout for the PDQ15-Q24-S5-D would involve keeping the input and output traces separate, using a solid ground plane, and placing the DC-DC converter close to the input capacitors. Additionally, it's recommended to use a thermal relief pattern for the vias to ensure good heat dissipation.
To ensure reliability in high-temperature environments, it's essential to provide adequate airflow, use a heat sink if necessary, and follow the recommended derating guidelines for the output power. Additionally, consider using a thermally conductive material for the PCB and ensure good thermal interface material (TIM) between the converter and the heat sink.
The PDQ15-Q24-S5-D has built-in EMI filtering, but additional filtering may be required depending on the specific application and regulatory requirements. It's recommended to follow the guidelines in the datasheet and consider adding external EMI filters if necessary to ensure compliance with regulations such as EN55022 or CISPR22.
Yes, the PDQ15-Q24-S5-D can be used in a redundant or parallel configuration, but it's essential to follow the recommended guidelines for synchronization and current sharing. Additionally, ensure that the converters are properly isolated and that the output voltages are matched to prevent any damage or instability.
The recommended input capacitors for the PDQ15-Q24-S5-D are low-ESR ceramic or film capacitors with a minimum capacitance of 10uF. For the output, it's recommended to use low-ESR ceramic or electrolytic capacitors with a minimum capacitance of 22uF. The specific capacitor values and types may vary depending on the application and output requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDQ15-Q24-S5-D Overview

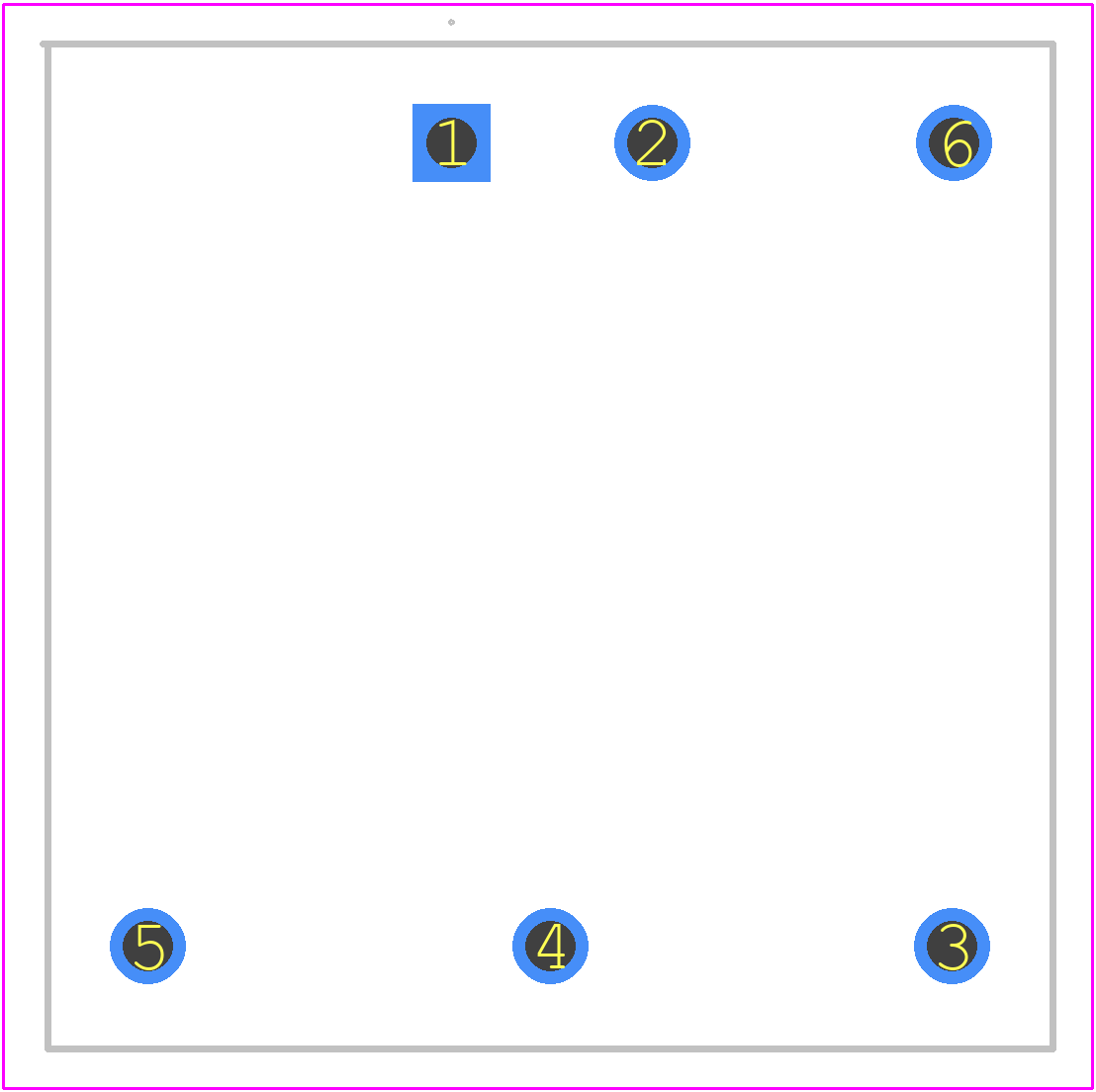

Use the download button to access the PDQ15-Q24-S5-D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDQ15,
or try a keyword search, such as Power Supply Modules
