PDQ30-Q24-D15-D - CUI Inc.

Description: Isolated DC/DC Converters 30W 9-36Vin +/-15V +/-1A Iso Reg DIP

Download PDQ30-Q24-D15-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

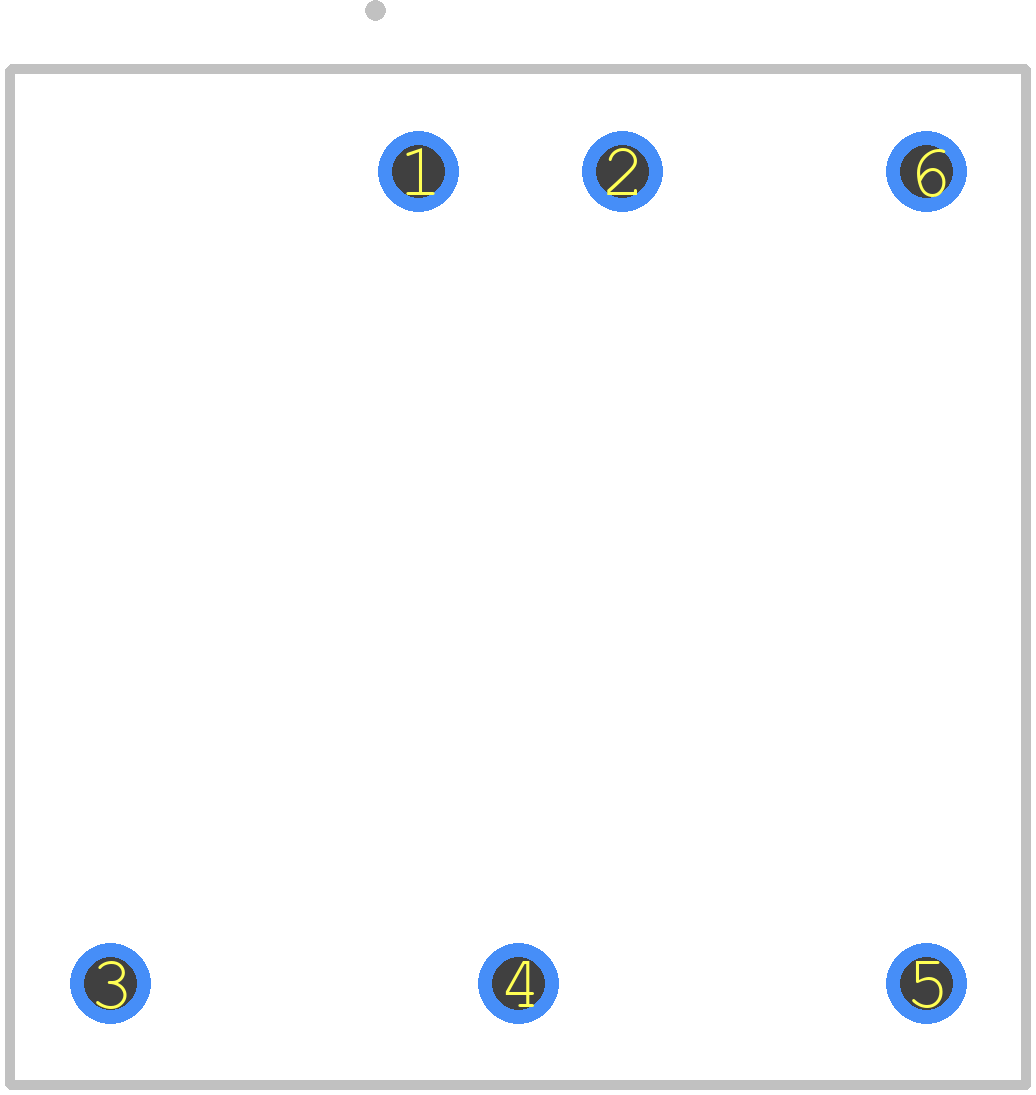

PDQ30-Q24-D15-D - CUI Inc. PCB footprint - Other - Other - PDQ30-D
click to zoom
3D Models
PDQ30-Q24-D15-D - CUI Inc.  - 3D model - Other - PDQ30-D
click to zoom

PDQ30-Q24-D15-D Details

  • Manufacturer Part Number:

    PDQ30-Q24-D15-D

  • Brand Name:

    CUI Inc

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    DIP-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    7

  • Additional Feature:

    ALSO AVAILABLE WITH -15V DC OUTPUT

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XDMA-P6

  • Length:

    25.4 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    15.225 V

  • Output Voltage-Min:

    14.775 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    30 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

PDQ30-Q24-D15-D Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the tab of the device, and to use thermal vias to dissipate heat to the other layers of the PCB.
  • To ensure reliable operation in high-vibration environments, it is recommended to secure the device using a screw or adhesive, and to use a PCB with a rigid design to minimize flexure.
  • The maximum allowable voltage deviation for the input voltage is ±10% of the nominal input voltage, as specified in the datasheet.
  • Yes, the PDQ30-Q24-D15-D can be used in a redundant configuration, but it is recommended to use a diode orifice or other isolation method to prevent back-feeding of power.
  • The typical efficiency of the converter varies depending on the load, but it is typically around 85-90% efficient at full load, and around 80-85% efficient at half load.
