PDQ30-Q24-S15-D - CUI Inc.

Description: Isolated DC/DC Converters 30W 9-36Vin 15Vout 2A Iso Reg DIP

Download PDQ30-Q24-S15-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

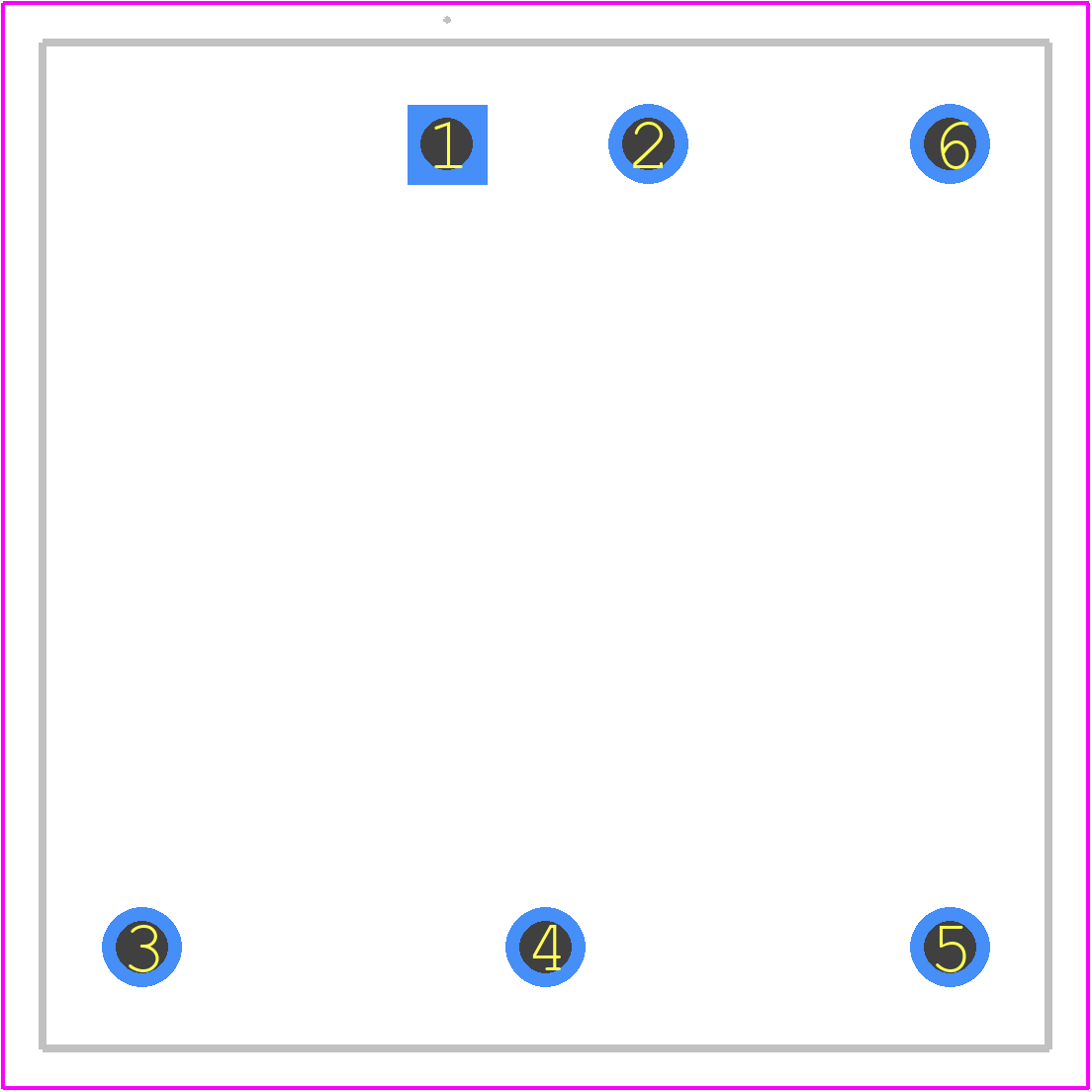

PDQ30-Q24-S15-D - CUI Inc. PCB footprint - Other - Other -  PDQ30-D
click to zoom
3D Models
PDQ30-Q24-S15-D - CUI Inc.  - 3D model - Other -  PDQ30-D
click to zoom

PDQ30-Q24-S15-D Details

  • Manufacturer Part Number:

    PDQ30-Q24-S15-D

  • Brand Name:

    CUI Inc

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    DIP-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XDMA-P6

  • Length:

    25.4 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    16.5 V

  • Output Voltage-Min:

    13.5 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    30 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm
