PDQ30-Q24-S3-D - CUI Inc.

Description: Isolated DC/DC Converters

Download PDQ30-Q24-S3-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

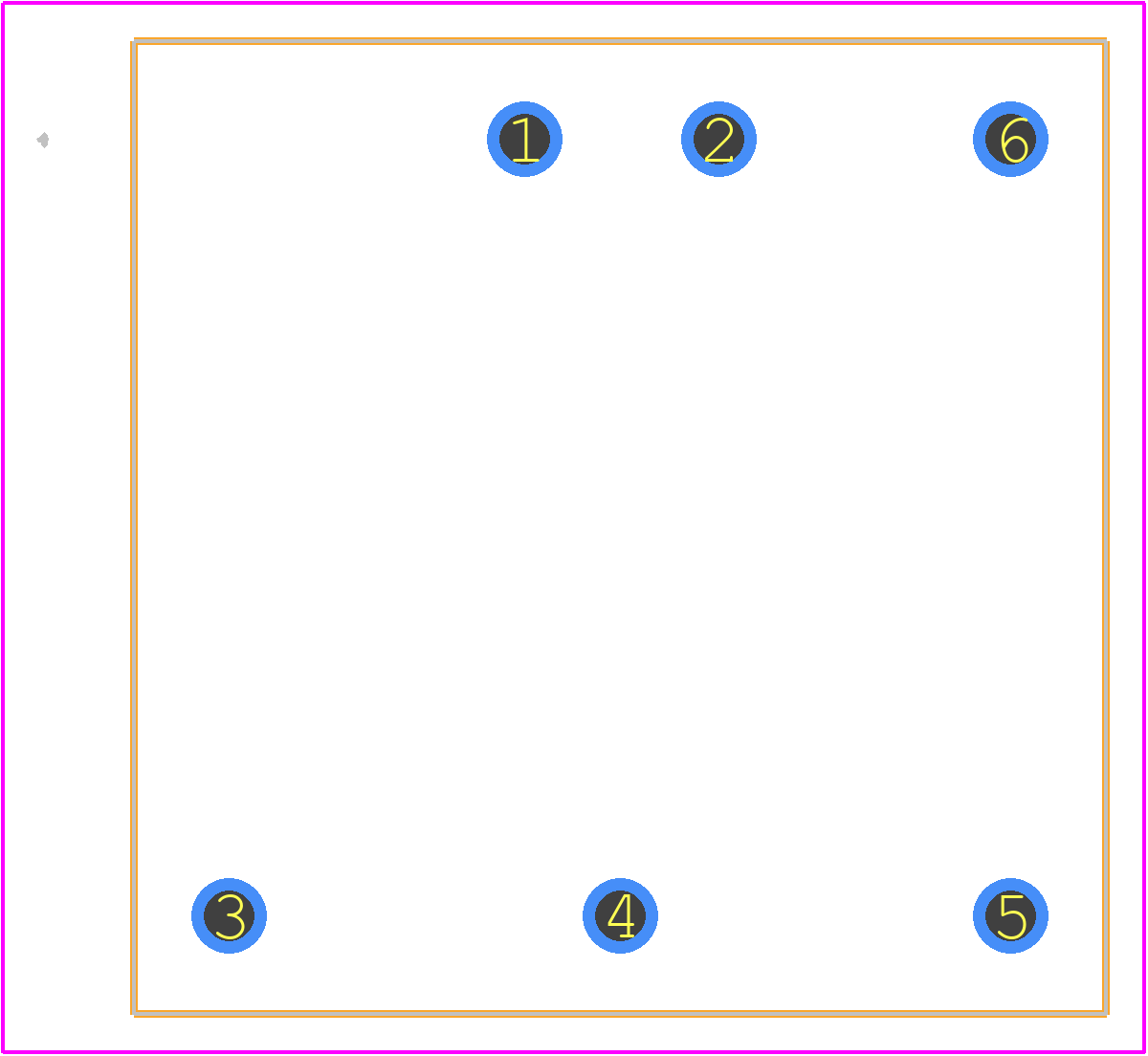

PDQ30-Q24-S3-D - CUI Inc. PCB footprint - Other - Other - PDQ30-Q24-S3-D-1
click to zoom
3D Models
PDQ30-Q24-S3-D - CUI Inc.  - 3D model - Other - PDQ30-Q24-S3-D-1
click to zoom

PDQ30-Q24-S3-D Details

  • Manufacturer Part Number:

    PDQ30-Q24-S3-D

  • Brand Name:

    CUI Inc

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    DIP-6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XDMA-P6

  • Length:

    25.4 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.63 V

  • Output Voltage-Min:

    2.97 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    24.75 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

PDQ30-Q24-S3-D Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable soldering, use a soldering iron with a temperature range of 250-300°C. Apply a small amount of solder paste to the pads, and use a gentle soldering technique to avoid damaging the components.
  • A recommended input capacitor value is 10-22uF, with a voltage rating of 50-100V. A ceramic or electrolytic capacitor with low ESR (Equivalent Series Resistance) is recommended for optimal performance.
  • To troubleshoot common issues, check the input voltage, output load, and ambient temperature. Verify that the input capacitor is properly sized and the PCB layout is optimal. Use an oscilloscope to check for voltage ripple or oscillations. Consult the datasheet and application notes for further guidance.
  • The maximum allowable output capacitance is 220uF. Exceeding this value may cause instability or oscillations in the output voltage.
