PDQ30-Q24-S5-D footprint, schematic symbol and 3D model by CUI Inc.

Symbol

click to zoom

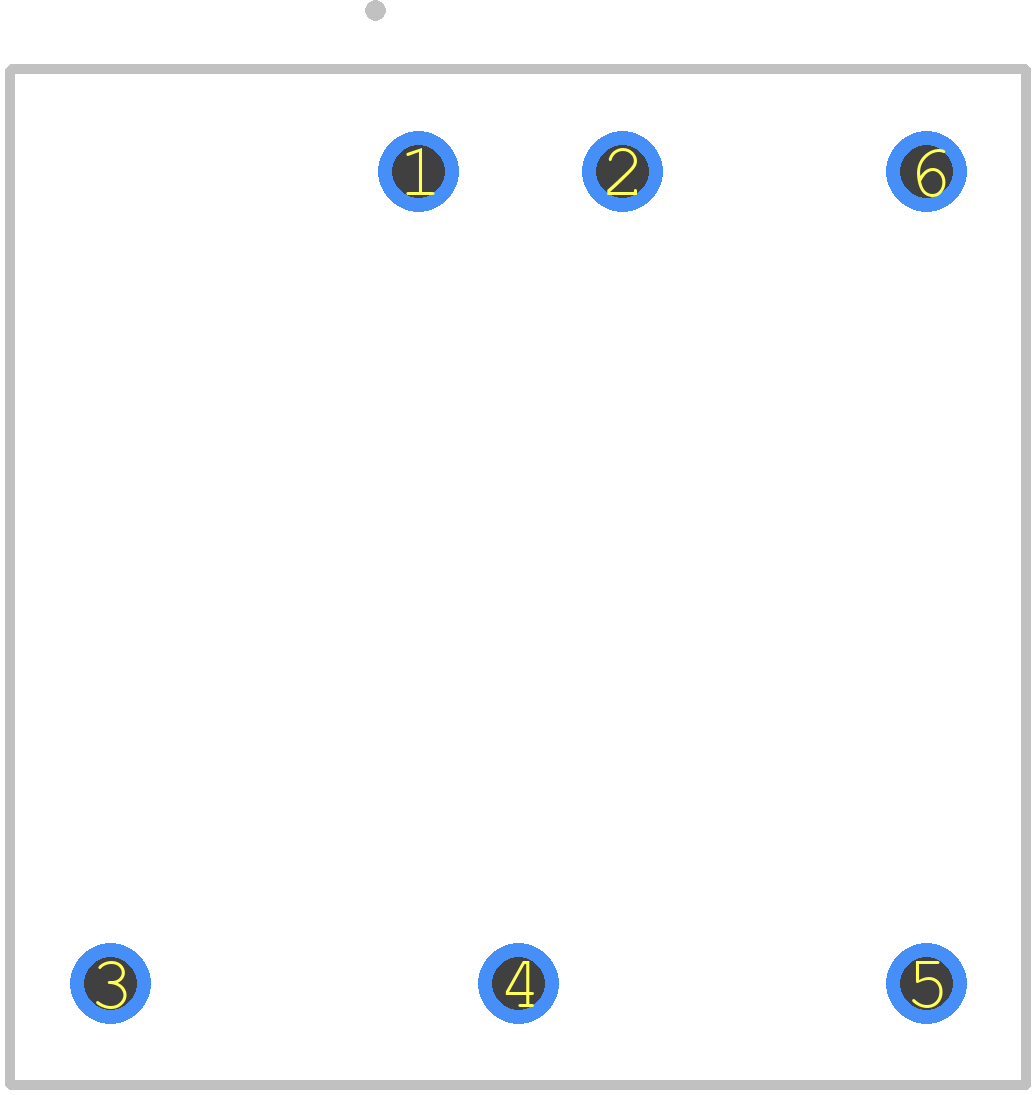

PCB Footprints

PDQ30-Q24-S5-D - CUI Inc. PCB footprint - Other - Other - PDQ30-D

click to zoom

3D Models

PDQ30-Q24-S5-D - CUI Inc. - 3D model - Other - PDQ30-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PDQ30-Q24-S5-D
Part Number PDQ30-Q24-S5-D
Manufacturer CUI Inc.
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - PDQ30-D
Released Date Sep 10, 2018
Last Modified Date Apr 7, 2025 11:56 AM UTC
Pinout / Pin List Click Here (Member Only)

PDQ30-Q24-S5-D Details

Manufacturer Part Number:
PDQ30-Q24-S5-D
Brand Name:
CUI Inc
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
DIP-6
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Manufacturer:
CUI Inc
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
S-XDMA-P6
Length:
25.4 mm
Load Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
55 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
5.5 V
Output Voltage-Min:
4.5 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
30 W
Trim/Adjustable Output:
YES
Width:
25.4 mm

PDQ30-Q24-S5-D Frequently Asked Questions (FAQs)

A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the tab of the device, and to use thermal vias to dissipate heat to the other layers of the PCB.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the time the iron is in contact with the device.
The maximum allowable voltage deviation for the input voltage is ±10% of the nominal input voltage. Exceeding this deviation may affect the device's performance and reliability.
Yes, the PDQ30-Q24-S5-D is designed to withstand vibrations up to 10G. However, it's recommended to follow proper mounting and screw torque procedures to ensure the device remains securely fastened.
To troubleshoot issues, first check the input voltage and ensure it's within the specified range. Then, verify the output voltage and current are within the specified ranges. If issues persist, consult the datasheet and application notes or contact CUI Inc's technical support.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PDQ30-Q24-S5-D Overview

Use the download button to access the PDQ30-Q24-S5-D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PDQ30, or try a keyword search, such as Power Supply Modules
