PDQE10-Q24-S9-D footprint, schematic symbol and 3D model by CUI Inc.

Symbol

click to zoom

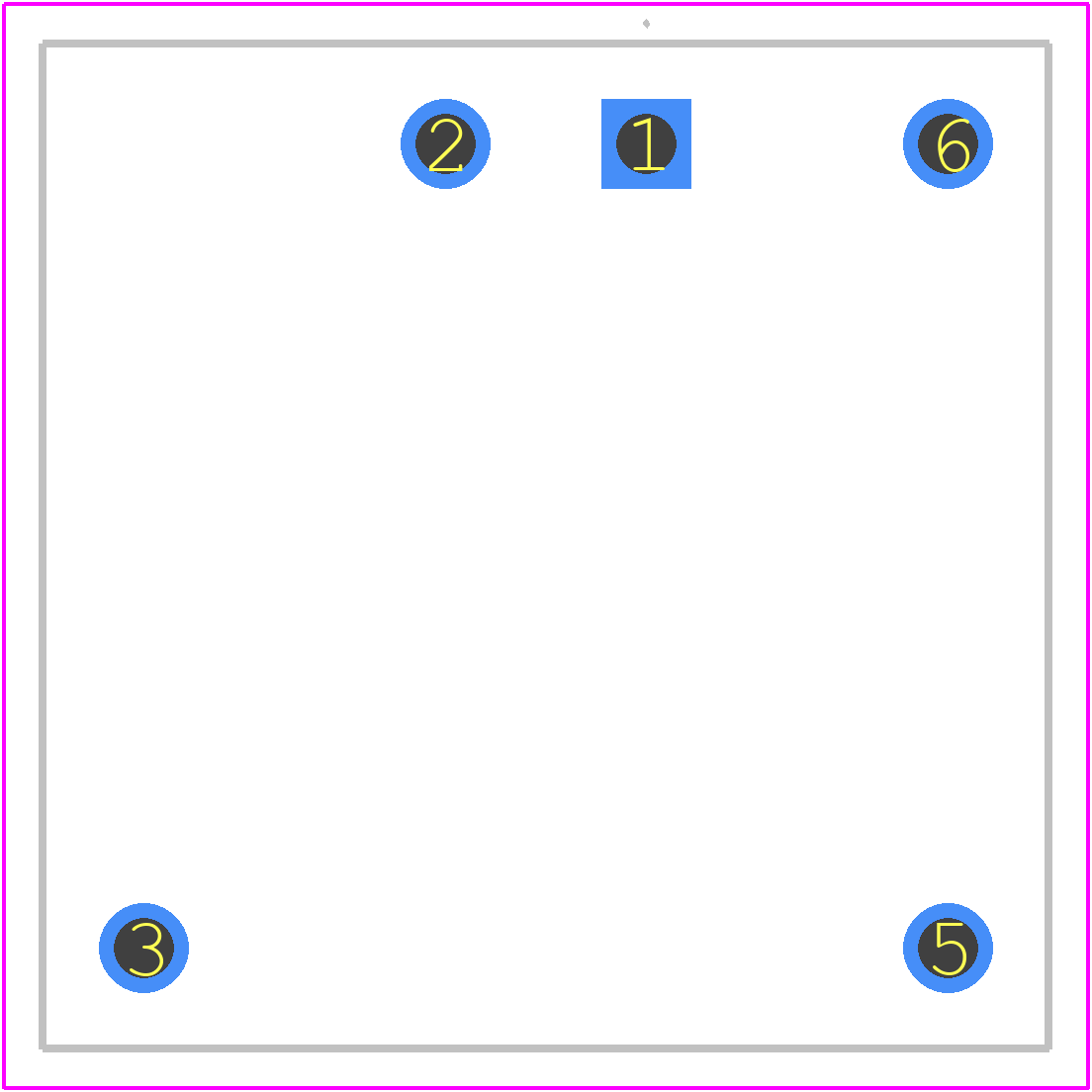

PCB Footprints

PDQE10-Q24-S9-D - CUI Inc. PCB footprint - Other - Other - PDQE10-Q24-S9-D-1

click to zoom

3D Models

PDQE10-Q24-S9-D - CUI Inc. - 3D model - Other - PDQE10-Q24-S9-D-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PDQE10-Q24-S9-D
Part Number PDQE10-Q24-S9-D
Manufacturer CUI Inc.
Pin Count 5
Part Category Power Supply
Package Category Other
Footprint Name Other - PDQE10-Q24-S9-D-1
Released Date Apr 26, 2022
Last Modified Date Apr 7, 2025 11:56 AM UTC
Pinout / Pin List Click Here (Member Only)

PDQE10-Q24-S9-D Details

Manufacturer Part Number:
PDQE10-Q24-S9-D
Brand Name:
CUI Inc
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
ECCN Code:
EAR99
Date Of Intro:
2018-09-14
Manufacturer:
CUI Inc
YTEOL:
3
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
EN, IEC, UL
Efficiency (Main Output):
86%
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
S-XDIP-P5
Length:
25.4 mm
Line Regulation-Max:
0.5%
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
5
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1.111 A
Output Voltage-Max:
9.27 V
Output Voltage-Min:
8.73 V
Output Voltage-Nom:
9 V
Package Body Material:
UNSPECIFIED
Package Code:
DIP
Package Shape:
SQUARE
Package Style:
IN-LINE
Peak Reflow Temperature (Cel):
260
Protections:
OVER VOLTAGE; OVER CURRENT; SHORT CIRCUIT
Ripple Voltage (Main Out):
0.02828 Vrms
Seated Height-Max:
12.2 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
10 W
Trim/Adjustable Output:
NO
Warm-up Time:
2 s
Width:
25.4 mm

PDQE10-Q24-S9-D Frequently Asked Questions (FAQs)

CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the module and the heat sink.
CUI recommends following the recommended PCB mounting and screw torque specifications to ensure the module is securely fastened. Additionally, using a conformal coating and potting the module can help improve reliability in high-vibration environments.
The maximum allowable capacitance for the output filter is 10uF. Exceeding this value may affect the module's stability and performance.
Yes, the PDQE10-Q24-S9-D can be used in a redundant or parallel configuration, but it's essential to follow CUI's guidelines for synchronization and current sharing to ensure reliable operation.
CUI provides a troubleshooting guide in the module's documentation, which includes procedures for identifying and resolving common issues. Additionally, CUI's technical support team is available to assist with troubleshooting and debugging.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PDQE10-Q24-S9-D Overview

Use the download button to access the PDQE10-Q24-S9-D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PDQE1, or try a keyword search, such as Power Supply Modules
