PDQE15-Q24-D12-D - CUI Inc.

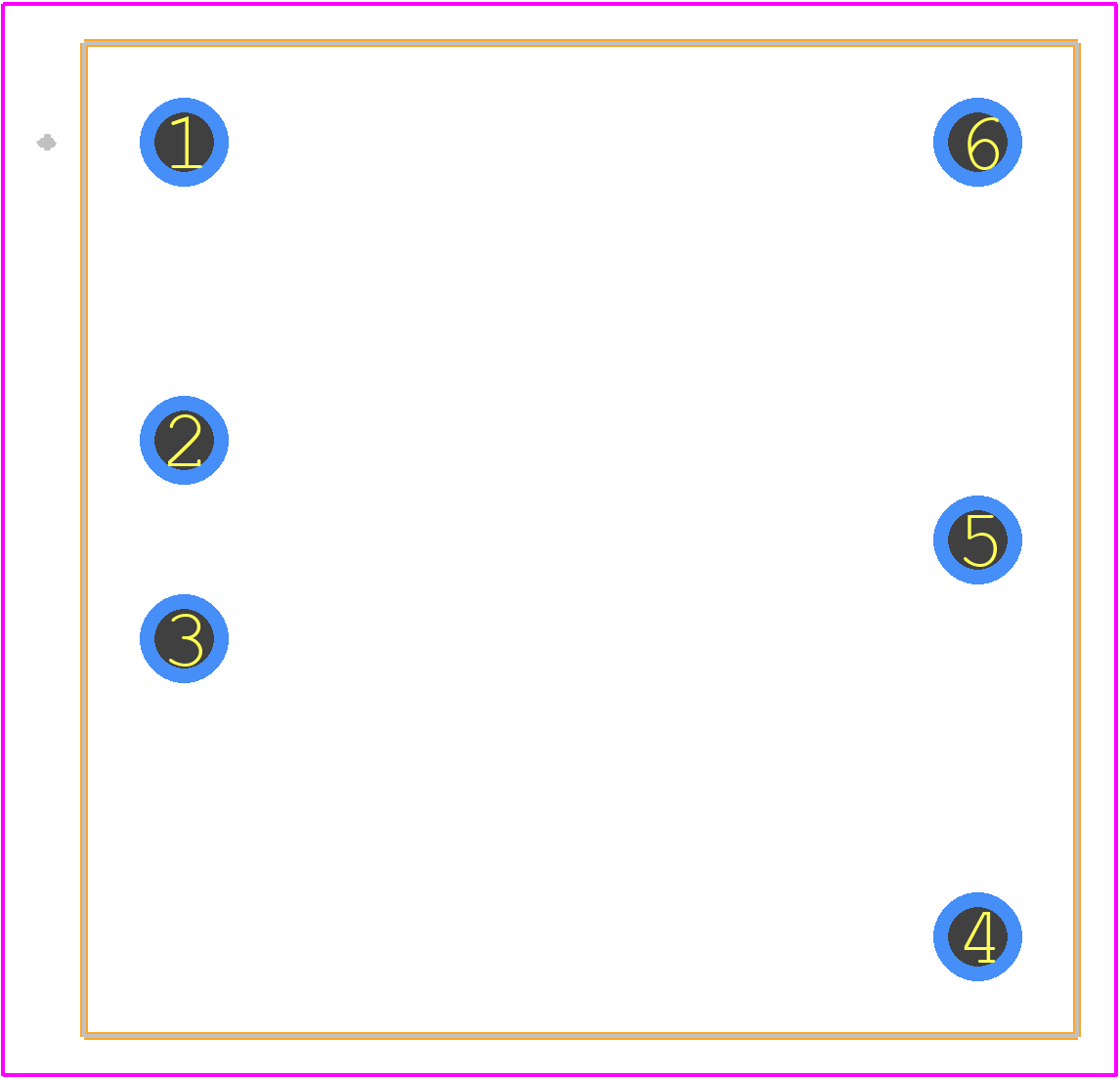

PDQE15-Q24-D12-D Details

• Manufacturer Part Number:

  PDQE15-Q24-D12-D

• Brand Name:

  CUI Inc

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Package Description:

  PACKAGE-6

• ECCN Code:

  EAR99

• Date Of Intro:

  2019-10-09

• Manufacturer:

  CUI Inc

• YTEOL:

  3

• Additional Feature:

  -12 V ADDITIONAL OUTPUT ALSO AVAILABLE

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EN, IEC, UL

• Efficiency (Main Output):

  90%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  S-XDIP-P6

• Length:

  25.4 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  6

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.625 A

• Output Voltage-Max:

  12.36 V

• Output Voltage-Min:

  11.64 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP6,.8

• Package Shape:

  SQUARE

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OVER VOLTAGE, OVER CURRENT, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.0707 Vrms

• Seated Height-Max:

  12.2 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  15 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.01 s

• Width:

  25.4 mm
