The recommended PCB layout involves placing the module near the power input, using a solid ground plane, and keeping the output voltage traces short and wide. For thermal management, ensure good airflow, use a heat sink if possible, and avoid blocking the airflow vents on the module.
To ensure EMC, use a metal enclosure, keep the module away from sensitive circuits, use shielded cables, and follow proper grounding and bonding techniques. Additionally, consider adding EMI filters or common-mode chokes to the input and output lines.
The derating curves can be obtained from CUI Inc's application notes or by contacting their technical support. Generally, the module's power rating decreases with increasing temperature and altitude. Consult the manufacturer for specific derating curves.
Yes, but it requires careful consideration of the system design, including synchronization, current sharing, and fault tolerance. Consult CUI Inc's application notes or contact their technical support for guidance on implementing redundant or parallel configurations.
The start-up time is typically around 10-20 ms, and the shutdown time is around 1-2 ms. However, these times may vary depending on the specific application and input voltage. Consult the datasheet or contact CUI Inc's technical support for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDQE15-Q48-S5-D Overview

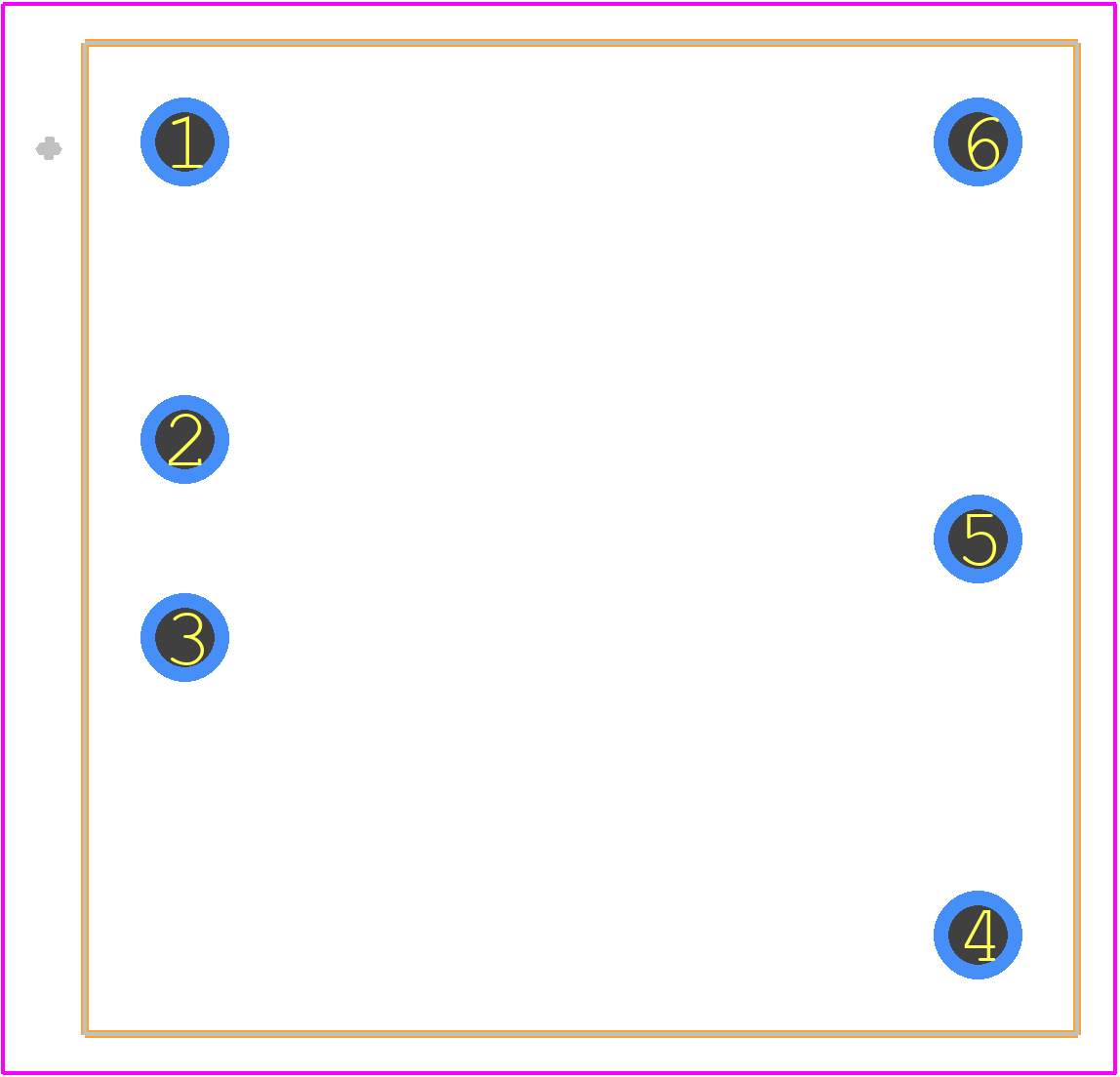

Use the download button to access the PDQE15-Q48-S5-D schematic symbol, PCB footprint, and 3D model.
