PDQE20-Q24-S5-D footprint, schematic symbol and 3D model by CUI Inc.

Symbol

click to zoom

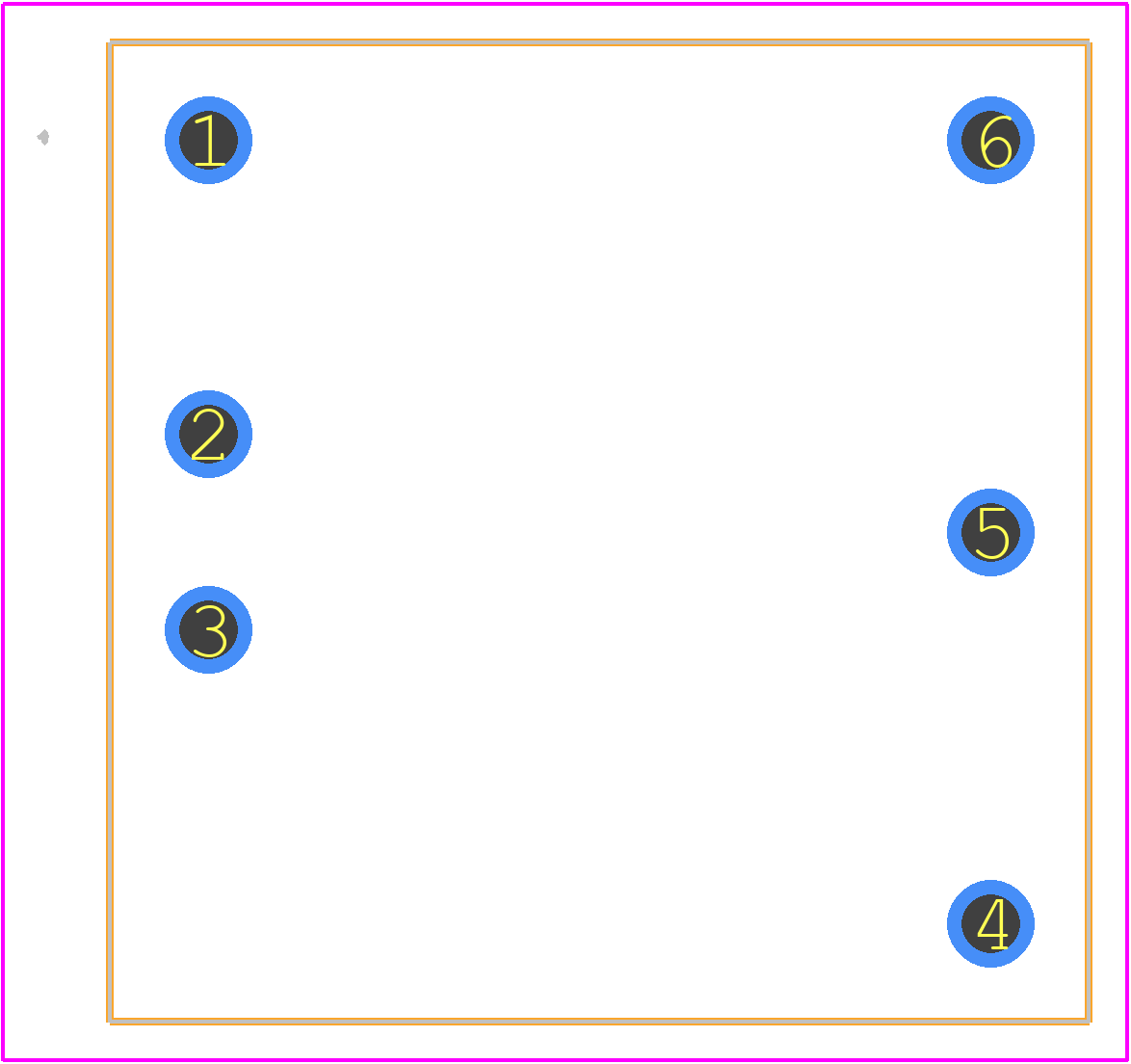

PCB Footprints

PDQE20-Q24-S5-D - CUI Inc. PCB footprint - Other - Other - PDQE15-Q24-S5-D-1

click to zoom

3D Models

PDQE20-Q24-S5-D - CUI Inc. - 3D model - Other - PDQE15-Q24-S5-D-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PDQE20-Q24-S5-D
Part Number PDQE20-Q24-S5-D
Manufacturer CUI Inc.
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - PDQE15-Q24-S5-D-1
Released Date Aug 1, 2019
Last Modified Date Apr 7, 2025 11:56 AM UTC
Pinout / Pin List Click Here (Member Only)

PDQE20-Q24-S5-D Details

Manufacturer Part Number:
PDQE20-Q24-S5-D
Brand Name:
CUI Inc
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
ECCN Code:
EAR99
Date Of Intro:
2019-07-02
Manufacturer:
CUI Inc
YTEOL:
3
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, EN, IEC, UL
Efficiency (Main Output):
90%
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
S-XDIP-P6
Length:
25.4 mm
Line Regulation-Max:
0.5%
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
95 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
4 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
4.5 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
DIP
Package Equivalence Code:
DIP6,.8
Package Shape:
SQUARE
Package Style:
IN-LINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
OVER VOLTAGE; OVER CURRENT; SHORT CIRCUIT
Ripple Voltage (Main Out):
0.03535 Vrms
Seated Height-Max:
12.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
20 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.01 s
Width:
25.4 mm

PDQE20-Q24-S5-D Frequently Asked Questions (FAQs)

A good PCB layout for the PDQE20-Q24-S5-D would involve keeping the input and output capacitors close to the module, using a solid ground plane, and minimizing the length of the input and output cables.
To ensure reliable operation in high-temperature environments, make sure to provide adequate airflow, keep the module away from heat sources, and consider derating the output power according to the temperature derating curve provided in the datasheet.
Exceeding the maximum input voltage rating can cause permanent damage to the module, including damage to the internal components and potentially leading to a failure. It's essential to ensure that the input voltage remains within the specified range.
Yes, the PDQE20-Q24-S5-D can be used in a redundant or parallel configuration, but it's essential to ensure that the modules are properly synchronized and that the output voltages are matched to prevent any damage or instability.
The typical efficiency of the PDQE20-Q24-S5-D is around 85-90% at full load, and it varies with load according to the efficiency curve provided in the datasheet. The efficiency is highest at full load and decreases as the load decreases.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PDQE20-Q24-S5-D Overview

Use the download button to access the PDQE20-Q24-S5-D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PDQE2, or try a keyword search, such as Power Supply Modules
