PDQE30-Q48-S5-D footprint, schematic symbol and 3D model by CUI Inc.

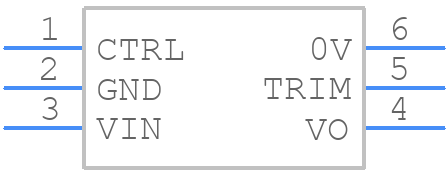

Symbol

click to zoom

PCB Footprints

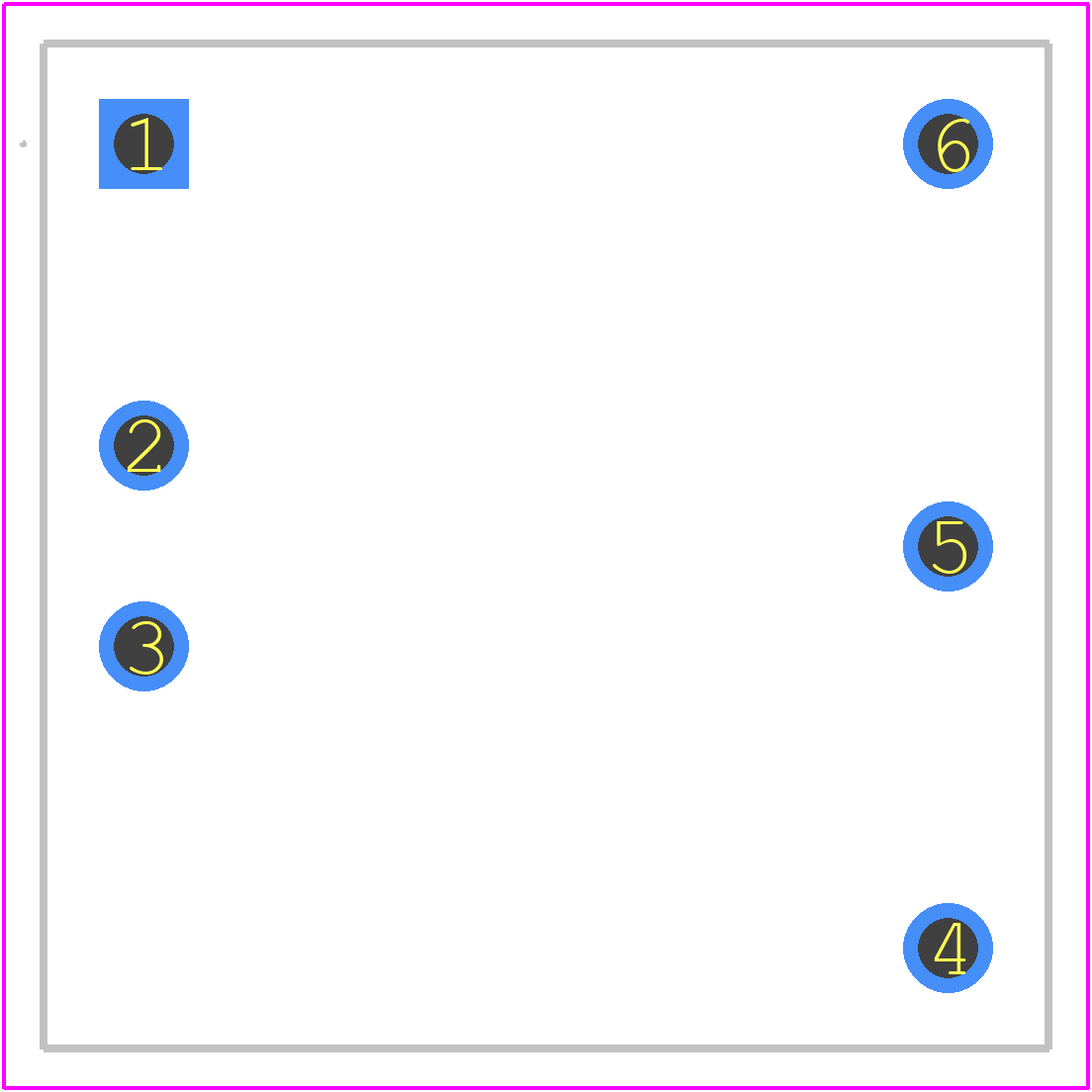

PDQE30-Q48-S5-D - CUI Inc. PCB footprint - Other - Other - 6-DIP Module_2025-1.1

click to zoom

3D Models

PDQE30-Q48-S5-D - CUI Inc. - 3D model - Other - 6-DIP Module_2025-1.1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PDQE30-Q48-S5-D
Part Number PDQE30-Q48-S5-D
Manufacturer CUI Inc.
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - 6-DIP Module_2025-1.1
Released Date Aug 3, 2025
Last Modified Date Aug 3, 2025 10:46 AM UTC
Pinout / Pin List Click Here (Member Only)

PDQE30-Q48-S5-D Details

Manufacturer Part Number:
PDQE30-Q48-S5-D
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
DIP-6
ECCN Code:
EAR99
Date Of Intro:
2020-04-16
Manufacturer:
CUI Inc
YTEOL:
7.7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
EN
Efficiency (Main Output):
88%
Input Voltage-Max:
75 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
48 V
JESD-30 Code:
S-XDMA-P6
Length:
25.4 mm
Line Regulation-Max:
0.5%
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
4.5 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
INPUT UNDER VOLTAGE; OUTPUT OVER VOLTAGE; OVER CURRENT; SHORT CIRCUIT
Ripple Voltage (Main Out):
0.04242 Vrms
Seated Height-Max:
12.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
30 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.01 s
Width:
25.4 mm

PDQE30-Q48-S5-D Frequently Asked Questions (FAQs)

CUI recommends a PCB layout with a solid ground plane and a thermal pad connected to a heat sink or a metal plate to dissipate heat. A minimum of 2oz copper thickness is recommended for the PCB.
CUI recommends following the layout and filtering guidelines provided in the datasheet, and also suggests adding additional EMI filtering components if necessary. It's also recommended to perform EMI testing with the converter in the specific application environment.
The maximum capacitance is dependent on the specific application and the output voltage. As a general rule, CUI recommends limiting the output capacitance to 10uF or less to avoid stability issues. However, it's recommended to consult with CUI's application engineers for specific guidance.
The PDQE30-Q48-S5-D is designed to meet the requirements of IEC 60950-1 and UL 60950-1, but it's recommended to perform additional testing and validation to ensure the converter meets the specific vibration and shock requirements of the application.
CUI recommends using a fuse with a rating of 2-3A, slow-blow type, to protect the converter from input overcurrent conditions.
