PDS1-S3-S5-M-TR - CUI Inc.

Description: DC-DC CONVERTER, 3.3V, 1W

Download PDS1-S3-S5-M-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

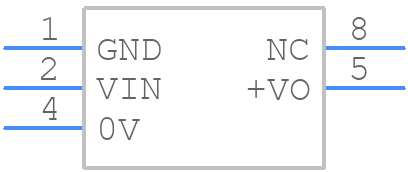

PDS1-S3-S5-M-TR - CUI Inc. - PCB symbol
click to zoom
PCB Footprints

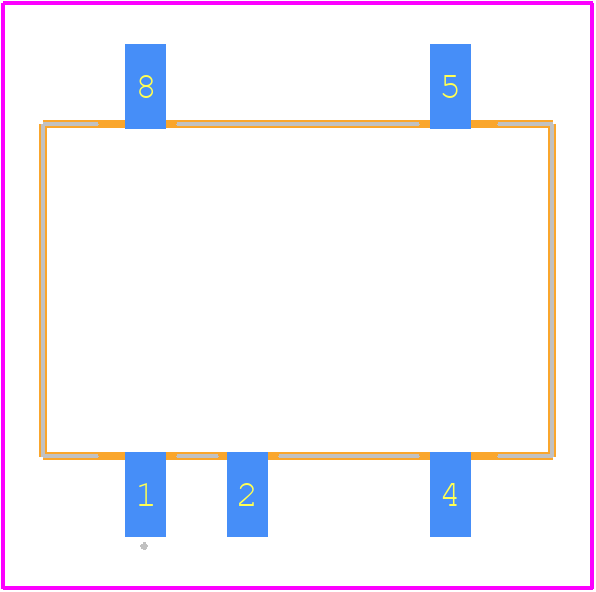

PDS1-S3-S5-M-TR - CUI Inc. PCB footprint - Other - Other - PDS1-M-1
click to zoom
3D Models
PDS1-S3-S5-M-TR - CUI Inc. - 3D model - Other - PDS1-M-1
click to zoom

PDS1-S3-S5-M-TR Details

  • Manufacturer Part Number:

    PDS1-S3-S5-M-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Pin Count:

    8/5

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    3.63 V

  • Input Voltage-Min:

    2.97 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDMA-G5

  • Length:

    12.7 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    7.5 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    8.3 mm

PDS1-S3-S5-M-TR Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the tab of the device, and to use thermal vias to dissipate heat to the other layers of the PCB.
  • To ensure proper soldering, use a soldering iron with a temperature of 250-270°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the time the iron is in contact with the device.
  • The maximum allowable voltage derating for this device is 80% of the rated voltage, as specified in the datasheet. Exceeding this derating may affect the device's reliability and lifespan.
  • While the device is designed to operate in a variety of environments, it's recommended to take precautions when using it in high-humidity environments. Consider applying a conformal coating to protect the device from moisture, and ensure the PCB is designed with moisture-resistant materials.
  • Store the device in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature is between -20°C to 30°C, and the relative humidity should be below 60%.
