CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the module and the heat sink.
To ensure reliability and longevity, operate the module within the recommended temperature range (–40°C to +85°C). Implement proper thermal management, and ensure the module is not exposed to moisture or humidity. Regularly inspect the module for signs of wear or damage.
The PDS2-S12-S9-M-TR module is designed to meet CISPR 22 Class B and EN 55022 Class B EMI standards. To ensure compliance, use proper PCB layout, grounding, and shielding techniques. Additionally, consider using EMI filters or common-mode chokes to reduce emissions.
Yes, the PDS2-S12-S9-M-TR module can be used in redundant or parallel configurations. However, it's essential to ensure proper synchronization and control of the modules to avoid instability or damage. Consult with CUI's application engineers for guidance on implementing such configurations.
The module's tolerance and derating factors can be found in the datasheet. In general, the module can tolerate ±10% input voltage variation, and output current derating is recommended above 70°C. Consult the datasheet or contact CUI's support team for specific derating factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDS2-S12-S9-M-TR Overview

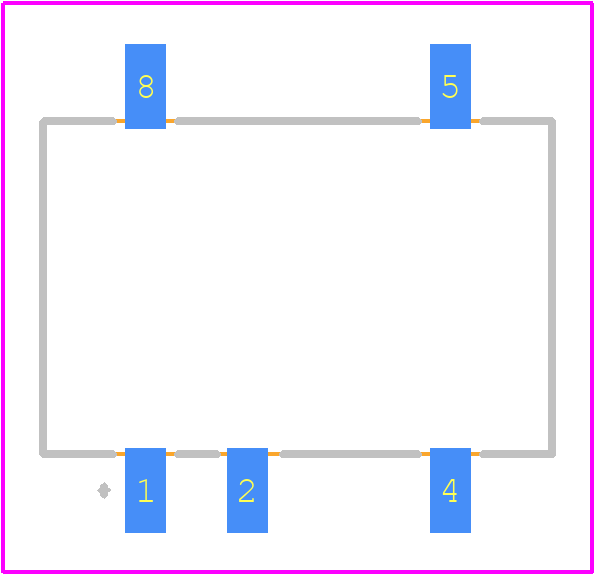

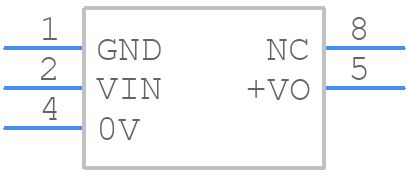

Use the download button to access the PDS2-S12-S9-M-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDS2-,
or try a keyword search, such as Power Supply Modules
