PDS2-S5-S15-M-TR footprint, schematic symbol and 3D model by CUI Inc.

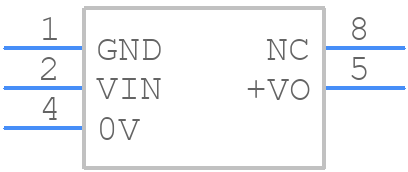

Symbol

click to zoom

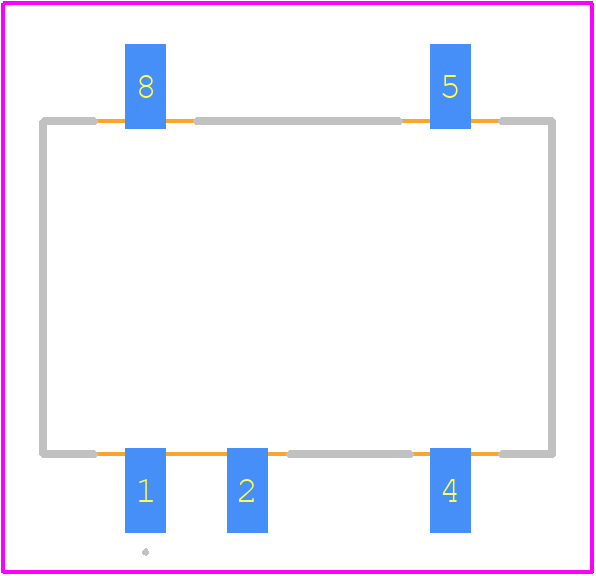

PCB Footprints

PDS2-S5-S15-M-TR - CUI Inc. PCB footprint - Other - Other - 8-SMD Module, 5 Leads_2024-5

click to zoom

3D Models

PDS2-S5-S15-M-TR - CUI Inc. - 3D model - Other - 8-SMD Module, 5 Leads_2024-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PDS2-S5-S15-M-TR
Part Number PDS2-S5-S15-M-TR
Manufacturer CUI Inc.
Pin Count 5
Part Category Power Supply
Package Category Other
Footprint Name Other - 8-SMD Module, 5 Leads_2024-5
Released Date Dec 9, 2024
Last Modified Date Dec 9, 2024 5:36 AM UTC
Pinout / Pin List Click Here (Member Only)

PDS2-S5-S15-M-TR Details

Manufacturer Part Number:
PDS2-S5-S15-M-TR
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
PACKAGE-8/5 PIN
ECCN Code:
EAR99
Manufacturer:
CUI Inc
YTEOL:
0
Analog IC - Other Type:
DC-DC UNREGULATED POWER SUPPLY MODULE
Efficiency (Main Output):
83%
Input Voltage-Max:
5.5 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-PDMA-G5
Length:
12.7 mm
Line Regulation-Max:
1.2%
Load Regulation-Max:
7%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
5
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.133 A
Output Voltage-Nom:
15 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Equivalence Code:
MODULE,5/8LEAD,.44
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Packing Method:
TR
Protections:
SHORT CIRCUIT
Ripple Voltage (Main Out):
0.03535 Vrms
Seated Height-Max:
7.5 mm
Surface Mount:
YES
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Total Power Output-Max:
2 W
Trim/Adjustable Output:
NO
Width:
8.3 mm

PDS2-S5-S15-M-TR Frequently Asked Questions (FAQs)

CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. For thermal management, a heat sink or thermal interface material can be used to reduce thermal resistance.
CUI recommends following the recommended soldering profile and using a solder with a melting point above 217°C. Ensure the PCB is clean and free of oxidation. Apply a small amount of solder paste and use a soldering iron with a temperature range of 250-270°C.
The PDS2-S5-S15-M-TR has an operating temperature range of -40°C to +85°C. However, derating may be necessary for high-temperature applications. Consult the datasheet for derating curves and guidelines.
The PDS2-S5-S15-M-TR is designed to meet the requirements of IEC 60068-2-27 for vibration and IEC 60068-2-29 for shock. However, it's recommended to perform additional testing and validation for specific environmental conditions.
The MTBF rating for the PDS2-S5-S15-M-TR is calculated based on MIL-HDBK-217F and is approximately 1.5 million hours at 25°C. However, this rating may vary depending on the application and operating conditions.
