A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
Ensure the VCC pin is connected to a stable 3.3V power supply, and the VEE pin is connected to a stable -3.3V power supply. Use a voltage regulator or a voltage reference to maintain a stable voltage.
The PE42020A-X can handle up to 30 dBm of input power. However, it's recommended to operate within the specified input power range of -15 dBm to 20 dBm for optimal performance.
Use a spectrum analyzer to check the input and output signals. Verify the power supply voltages and ensure proper grounding. Check for any signs of overheating or physical damage.
The PE42020A-X is rated for operation up to 85°C. However, it's recommended to derate the device for temperatures above 70°C to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PE42020A-X Overview

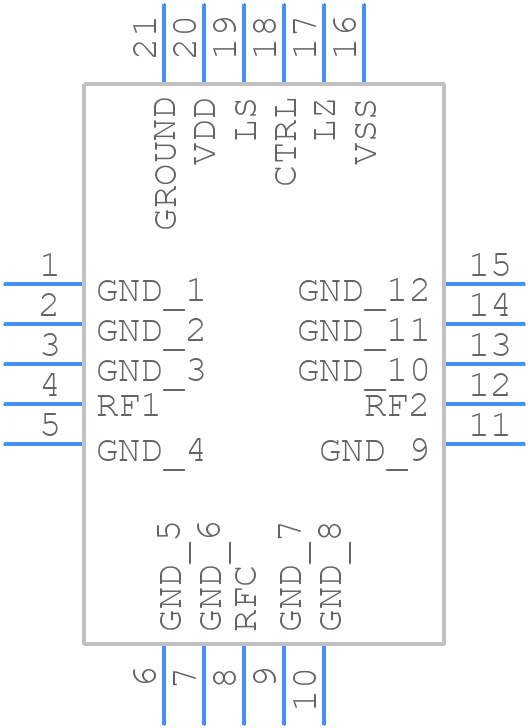

Use the download button to access the PE42020A-X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE420,
or try a keyword search, such as RF/Microwave Switches
