A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance-controlled lines. Avoid vias and tight bends in the RF path.
The PE423422A-Z requires a 3.3V power supply. Ensure the voltage regulator is stable and can provide sufficient current. Use a 10uF capacitor between VCC and GND, and a 1uF capacitor between VCC and AVCC.
The PE423422A-Z can operate up to 6 GHz, but the optimal frequency range is between 2.4 GHz and 5.8 GHz. Above 5.8 GHz, the device's performance may degrade.
Use a spectrum analyzer to verify the output frequency and power. Check the input and output impedance matching. Verify the power supply voltage and current. Use a logic analyzer to debug the control signals.
The PE423422A-Z is rated for operation up to 85°C. However, the device's performance may degrade above 70°C. Ensure proper heat sinking and thermal management to maintain optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PE423422A-Z Overview

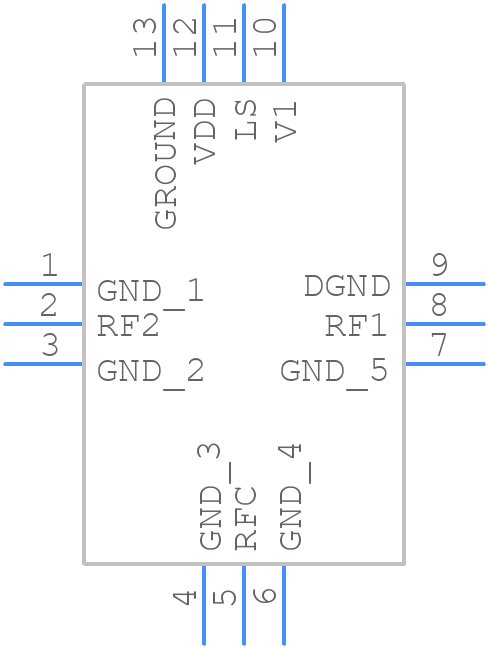

Use the download button to access the PE423422A-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE423,
or try a keyword search, such as Multiplexers or Switches
