PE423641MLAA-Z - Peregrine Semiconductor

Description: RF Switch ICs AEC-Q100 Certified SP4T, Low IL, Reflective, 50? RF Switch

Download PE423641MLAA-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

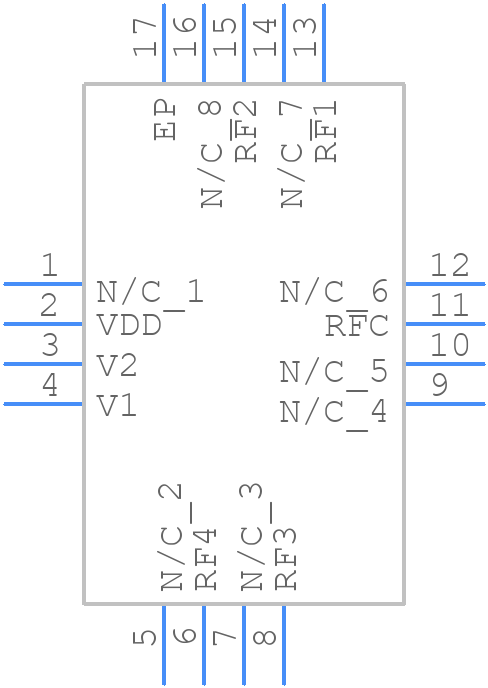

PE423641MLAA-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE423641MLAA-Z - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-lead 3x3 mm QFN-ren1
click to zoom
3D Models
PE423641MLAA-Z - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - 16-lead 3x3 mm QFN-ren1
click to zoom

PE423641MLAA-Z Details

  • Manufacturer Part Number:

    PE423641MLAA-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Manufacturer:

    pSemi

  • YTEOL:

    6

  • Additional Feature:

    HIGH LINEARITY AND ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    37 dBm

  • Insertion Loss-Max:

    1.3 dB

  • Isolation-Min:

    21 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    1 µs

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    2.75 V

  • RF/Microwave Device Type:

    SP4T

  • Screening Level:

    AEC-Q100; MIL-STD-883

  • Supply Current-Max:

    0.05 mA

  • Surface Mount:

    YES

  • Technology:

    UltraCMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.13
