PE42420F-Z - Peregrine Semiconductor

Description: RF Switch IC SPDT 6 GHz 50Ohm 20-LGA (4x4)

Download PE42420F-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

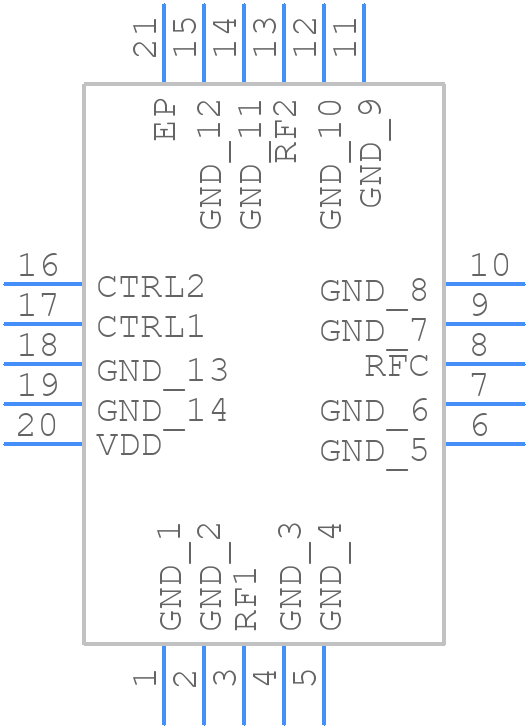

PE42420F-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE42420F-Z - Peregrine Semiconductor PCB footprint - Other - Other - PE42420F-Z-1
click to zoom
3D Models
PE42420F-Z - Peregrine Semiconductor - 3D model - Other - PE42420F-Z-1
click to zoom

PE42420F-Z Details

  • Manufacturer Part Number:

    PE42420F-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Date Of Intro:

    2020-05-12

  • Manufacturer:

    pSemi

  • YTEOL:

    7.6

  • Additional Feature:

    HIGH LINEARITY AND ISOLATION, I/P POWER-MAX(PEAK)=0.63W

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    25 dBm

  • Insertion Loss-Max:

    1.9 dB

  • Isolation-Min:

    44 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • On Time-Nom:

    0.3 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    20 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    SPDT

  • Supply Current-Max:

    0.2 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • VSWR-Max:

    1.22
