PE42422MLAA-Z - Peregrine Semiconductor

Description: RF Switch ICs SPDT, Low IL, Reflective, 50? RF Switch

Download PE42422MLAA-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

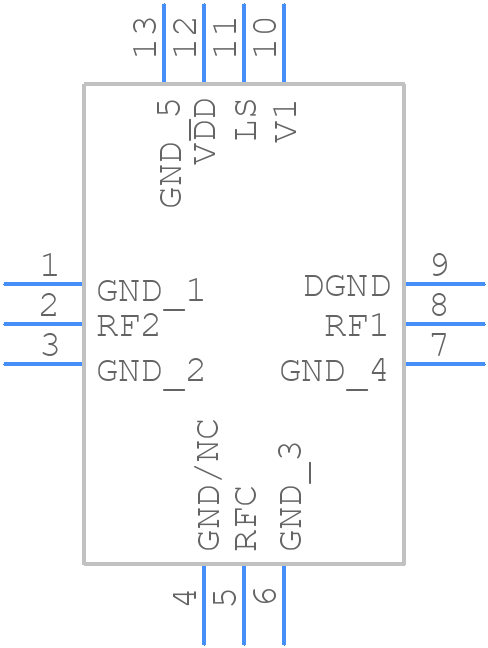

PE42422MLAA-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE42422MLAA-Z - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12-lead 2 × 2 × 0.55 mm QFN_2023
click to zoom
3D Models
PE42422MLAA-Z - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - 12-lead 2 × 2 × 0.55 mm QFN_2023
click to zoom

PE42422MLAA-Z Details

  • Manufacturer Part Number:

    PE42422MLAA-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    pSemi

  • YTEOL:

    6.3

  • 1dB Compression Point:

    33 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    32 dBm

  • Insertion Loss-Max:

    0.9 dB

  • Isolation-Min:

    15 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • On Time-Nom:

    2 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.08SQ,20

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    SPDT

  • Supply Current-Max:

    0.2 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.05

PE42422MLAA-Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • Use a thermal pad or a heat sink to keep the junction temperature below 125°C. Ensure good thermal conductivity between the device and the PCB. Follow the recommended reflow soldering profile to prevent thermal stress.
  • The control pins (VCTL and VREF) should not exceed 3.6V to prevent damage. Use a voltage regulator or a voltage divider to ensure the control voltage remains within the recommended range.
  • Use a 50Ω transmission line and ensure the PCB trace impedance matches the device's input/output impedance. Use a π-network or a T-network to match the impedance and minimize reflections.
  • Use a TVS (Transient Voltage Suppressor) diode or a zener diode with a voltage rating above 3.6V to protect the device from electrostatic discharge. Ensure the ESD protection is connected between the signal lines and the ground plane.
