PE42424A-Z - Peregrine Semiconductor

Description: RF Switch ICs SPDT, Reflective, 50? WiFi RF Switch

Download PE42424A-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

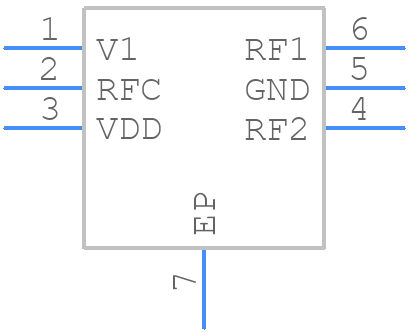

PE42424A-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE42424A-Z - Peregrine Semiconductor PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-LEAD 1.5MMx1.5MM DFN
click to zoom
3D Models
PE42424A-Z - Peregrine Semiconductor - 3D model - Small Outline No-lead - 6-LEAD 1.5MMx1.5MM DFN
click to zoom

PE42424A-Z Details

  • Manufacturer Part Number:

    PE42424A-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    pSemi

  • YTEOL:

    8.2

  • 1dB Compression Point:

    40 dBm

  • Additional Feature:

    HIGH LINEARITY, I/P POWER-MAX(PULSE)=7.94W

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    29 dBm

  • Insertion Loss-Max:

    1.6 dB

  • Isolation-Min:

    24 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • On Time-Nom:

    0.145 µs

  • Operating Frequency-Max:

    8500 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.06,20

  • Packing Method:

    TR

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    SPDT

  • Supply Current-Max:

    0.3 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.2

PE42424A-Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
  • The PE42424A-Z requires a 3.3V power supply. Ensure the voltage regulator is stable and can provide enough current. Add decoupling capacitors close to the device to reduce noise and ensure a stable bias.
  • The PE42424A-Z can operate up to 6 GHz. However, the actual operating frequency depends on the specific application and the quality of the PCB layout.
  • Use a spectrum analyzer to check for spurious emissions or harmonics. Verify the power supply and biasing. Check the PCB layout for any defects or noise coupling. Consult the datasheet and application notes for troubleshooting guides.
  • The PE42424A-Z is rated for operation up to 85°C. However, the device's performance may degrade at higher temperatures. Ensure proper heat sinking and thermal management to maintain optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE42424A-Z Overview

Use the download button to access the PE42424A-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE424, or try a keyword search, such as RF/Microwave Switches
