PE42430MLAB-Z - Peregrine Semiconductor

Description: RF Switch ICs SP3T, Low IL, Reflective, 50? RF Switch

Download PE42430MLAB-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

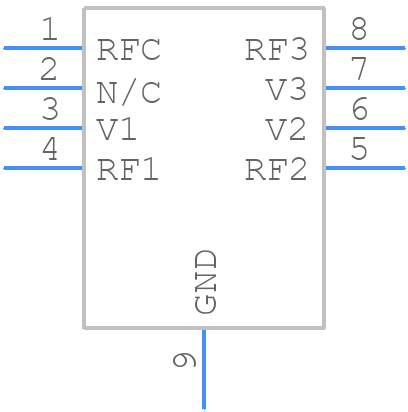

PE42430MLAB-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE42430MLAB-Z - Peregrine Semiconductor PCB footprint - Small Outline No-lead - Small Outline No-lead - PE42430MLAB-Z
click to zoom
3D Models
PE42430MLAB-Z - Peregrine Semiconductor - 3D model - Small Outline No-lead - PE42430MLAB-Z
click to zoom

PE42430MLAB-Z Details

  • Manufacturer Part Number:

    PE42430MLAB-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    pSemi

  • YTEOL:

    6.2

  • Additional Feature:

    HIGH LINEARITY AND ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    0.95 dB

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SP3T

  • VSWR-Max:

    1.17
