PE42442A-Z - Peregrine Semiconductor

Description: RF Switch ICs SP4T, High Iso, Absorptive, 50? RF Switch

Download PE42442A-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

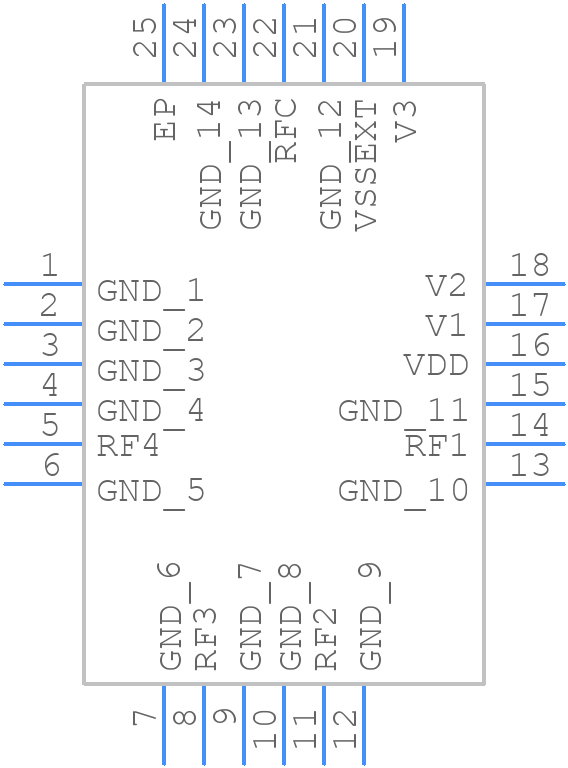

PE42442A-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE42442A-Z - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PE42442A-Z
click to zoom
3D Models
PE42442A-Z - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - PE42442A-Z
click to zoom

PE42442A-Z Details

  • Manufacturer Part Number:

    PE42442A-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    pSemi

  • YTEOL:

    7.1

  • 1dB Compression Point:

    35 dBm

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    34 dBm

  • Insertion Loss-Max:

    2.35 dB

  • Isolation-Min:

    29 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.255 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    30 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    SP4T

  • Surface Mount:

    YES

  • Technology:

    UltraCMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.33

PE42442A-Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
  • The PE42442A-Z requires a 3.3V power supply. Ensure the voltage regulator is stable and can provide enough current. Use a 10uF capacitor between VCC and GND, and a 100nF capacitor between VCC and AVCC.
  • The PE42442A-Z can operate up to 6 GHz, but the maximum frequency depends on the specific application and the quality of the PCB layout.
  • Use a spectrum analyzer to check for spurious emissions. Verify the power supply voltage and current. Check the PCB layout for any defects or noise coupling. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • The PE42442A-Z is rated for operation up to 85°C. However, the device's performance may degrade at higher temperatures. Consult the datasheet for thermal derating information and consider using a heat sink or thermal management system if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE42442A-Z Overview

Use the download button to access the PE42442A-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE424, or try a keyword search, such as RF/Microwave Switches
