PE42451MLIAA-Z - Peregrine Semiconductor

Description: RF Switch IC General Purpose SP5T 4 GHz 50Ohm 24-QFN (4x4)

Download PE42451MLIAA-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

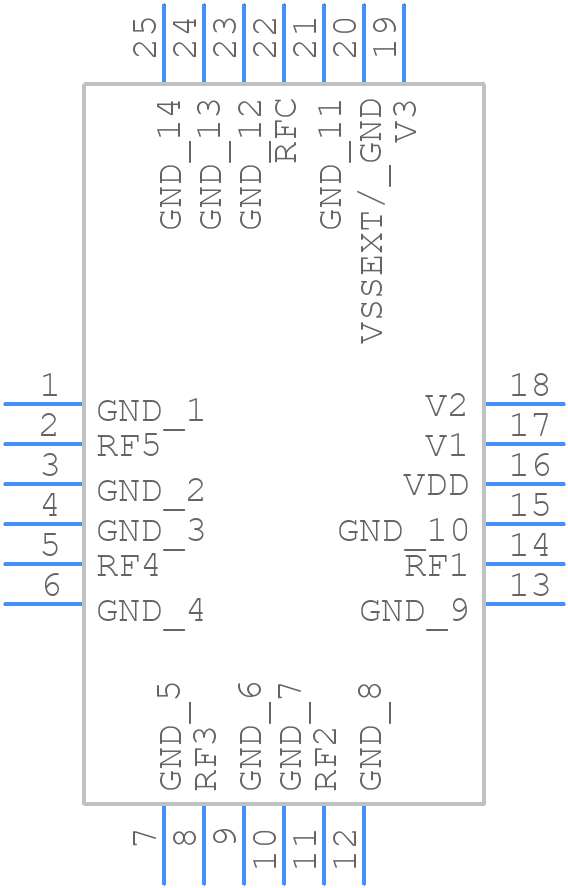

PE42451MLIAA-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE42451MLIAA-Z - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-lead 4x4mm QFN _2024
click to zoom
3D Models
PE42451MLIAA-Z - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - 24-lead 4x4mm QFN _2024
click to zoom

PE42451MLIAA-Z Details

  • Manufacturer Part Number:

    PE42451MLIAA-Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    pSemi

  • YTEOL:

    6.2

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Insertion Loss-Max:

    2.75 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    450 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SP5T

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    1.38

PE42451MLIAA-Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • Ensure the VCC pin is connected to a stable 3.3V power supply, and the VEE pin is connected to a stable -3.3V power supply. Also, ensure the bias resistors (RBIAS) are correctly sized and connected.
  • The maximum operating frequency of the PE42451MLIAA-Z is 6 GHz. However, the actual operating frequency may vary depending on the specific application and PCB layout.
  • Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The maximum junction temperature is 150°C, so ensure the device is operated within the recommended temperature range.
  • Use a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection device, such as the pSemi PE4302, to protect the PE42451MLIAA-Z from electrostatic discharge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE42451MLIAA-Z Overview

Use the download button to access the PE42451MLIAA-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE424, or try a keyword search, such as RF/Microwave Switches
