PE42482A-X - Peregrine Semiconductor

Description: RF Switch ICs SP8T, Absorptive, 50? RF Switch, w/o ext. Vss

Download PE42482A-X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

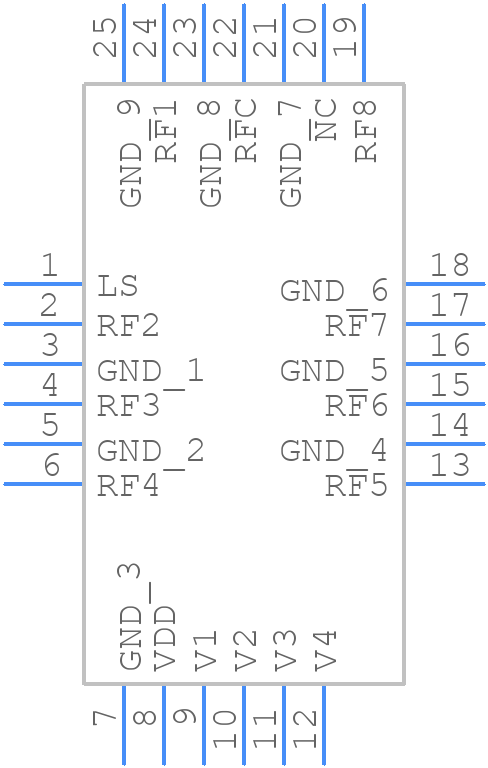

PE42482A-X - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE42482A-X - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-lead 4 × 4 × 0.85 mm QFN
click to zoom
3D Models
PE42482A-X - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - 24-lead 4 × 4 × 0.85 mm QFN
click to zoom

PE42482A-X Details

  • Manufacturer Part Number:

    PE42482A-X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    pSemi

  • YTEOL:

    6

  • Additional Feature:

    HIGH LINEARITY AND ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33 dBm

  • Insertion Loss-Max:

    2.8 dB

  • Isolation-Min:

    25 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.227 µs

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    SP8T

  • Supply Current-Max:

    0.2 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.12

PE42482A-X Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
  • Ensure the VCC pin is connected to a stable 3.3V power supply, and the VEE pin is connected to a stable -3.3V power supply. Use a voltage regulator or a low-dropout regulator to minimize noise and ripple.
  • The PE42482A-X can operate up to 6 GHz, but the optimal frequency range is between 2.4 GHz to 5.8 GHz for best performance and lowest noise figure.
  • Use a high-quality, low-noise voltage regulator to power the device. Ensure the PCB layout is optimized for minimal noise coupling. Use a noise-reducing component, such as a ferrite bead, on the VCC line.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is also 50 ohms. Ensure the impedance is matched to minimize reflections and optimize performance.
