PE42553B-Z - Peregrine Semiconductor

Description: RF Switch ICs SPDT, High Iso, High Power, Absorptive, 50? Instrumentation Switch

Download PE42553B-Z Model
Schematic
symbols

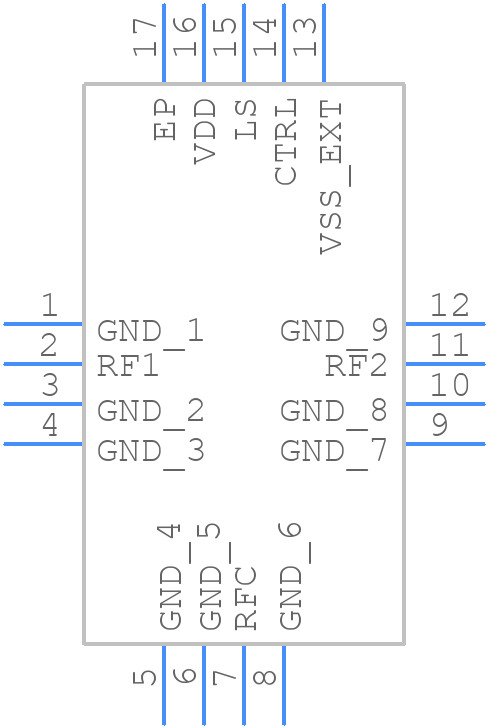

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PE42553B-Z - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-lead 3x3 mm QFN
click to zoom
3D Models
PE42553B-Z - Peregrine Semiconductor  - 3D model - Quad Flat No-Lead - 16-lead 3x3 mm QFN
click to zoom

PE42553B-Z Details

  • Manufacturer Part Number:

    PE42553B-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Date Of Intro:

    2018-11-05

  • Manufacturer:

    pSemi

  • YTEOL:

    5.9

  • Additional Feature:

    HIGH LINEARITY AND ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    37 dBm

  • Insertion Loss-Max:

    1.05 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SPDT

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.15
