PE42582A-X - Peregrine Semiconductor

Description: RF Switch ICs SP8T, Absorptive, 50? Instrumentation Switch

Download PE42582A-X Model

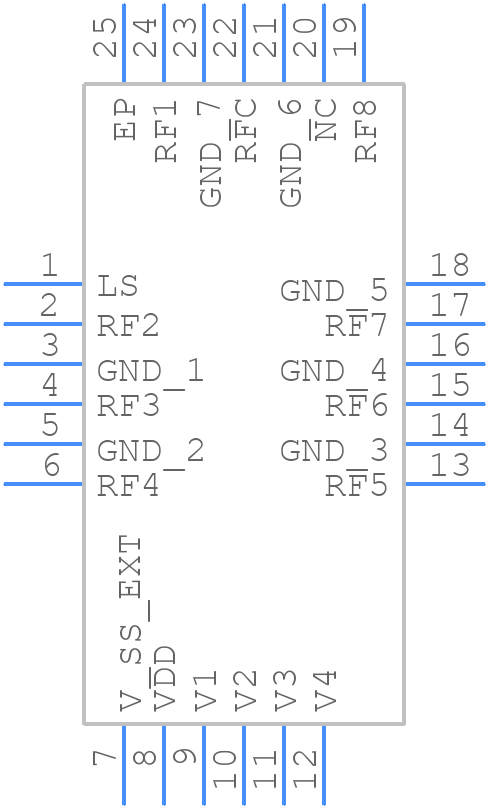

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PE42582A-X - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN
click to zoom
3D Models
PE42582A-X - Peregrine Semiconductor  - 3D model - Quad Flat No-Lead - QFN
click to zoom

PE42582A-X Details

  • Manufacturer Part Number:

    PE42582A-X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Date Of Intro:

    2017-03-06

  • Manufacturer:

    pSemi

  • YTEOL:

    6

  • Additional Feature:

    HIGH LINEARITY AND ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • Insertion Loss-Max:

    2.8 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SP8T

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    1.12

PE42582A-X Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use thermal pads or a heat sink for high-power applications.
  • Use a high-impedance input source, ensure a stable supply voltage, and optimize the output impedance matching. Additionally, use a low-loss PCB material and minimize parasitic inductances.
  • Use a 50-ohm input termination and a 50-ohm output termination with a DC-block capacitor. For high-frequency applications, consider using a resistive divider or a balun for impedance matching.
  • Use a shielded enclosure, keep the device away from noise sources, and ensure proper grounding. Implement EMI filters or shielding on the PCB, and consider using a Faraday cage or a metal enclosure.
  • The device has a built-in thermal shutdown that activates at 150°C. It also has an overcurrent protection mechanism that limits the output current to 1.5A. Ensure proper heat dissipation and current limiting to prevent device damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE42582A-X Overview

Use the download button to access the PE42582A-X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE425, or try a keyword search, such as RF/Microwave Switches
