PE426482A-X - Peregrine Semiconductor

Description: RF Switch ICs SP8T, -55 to +125 C, Absorptive, 50? RF Switch, w/o ext. Vss

Download PE426482A-X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

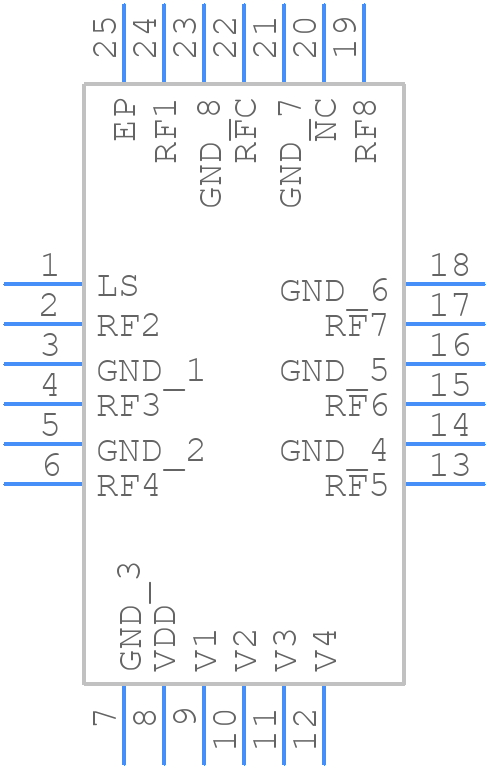

PE426482A-X - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE426482A-X - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-lead 4 × 4 × 0.85 mm QFN
click to zoom
3D Models
PE426482A-X - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - 24-lead 4 × 4 × 0.85 mm QFN
click to zoom

PE426482A-X Details

  • Manufacturer Part Number:

    PE426482A-X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Date Of Intro:

    2017-03-06

  • Manufacturer:

    pSemi

  • YTEOL:

    6

  • Additional Feature:

    HIGH LINEARITY AND ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Insertion Loss-Max:

    2.8 dB

  • Isolation-Min:

    25 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.227 µs

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Packing Method:

    TR

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    SP8T

  • Screening Level:

    MIL-STD-883

  • Supply Current-Max:

    0.2 mA

  • Surface Mount:

    YES

  • Technology:

    UltraCMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.11

PE426482A-X Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a Pi-filter to reduce EMI.
  • Ensure the VCC pin is connected to a stable 3.3V power supply, and the VEE pin is connected to a stable -3.3V power supply. Use a voltage regulator or a voltage divider to generate the required bias voltages.
  • The PE426482A-X can handle up to 30 dBm of input power. Exceeding this limit may cause damage to the device or affect its performance.
  • Check the power supply voltages, ensure proper biasing, and verify the control voltage levels. Use a logic analyzer or oscilloscope to monitor the control signals and output signals. Consult the datasheet and application notes for troubleshooting guidelines.
  • The PE426482A-X is rated for operation up to 85°C. However, high temperatures can affect its performance and reliability. Ensure proper heat sinking and thermal management to maintain a safe operating temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE426482A-X Overview

Use the download button to access the PE426482A-X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE426, or try a keyword search, such as RF/Microwave Switches
