PE4314B-Z - Peregrine Semiconductor

Description: Attenuators 75O 6Bit 31.5dB 0.5dB Digital Step Attenuator, optional ext. Vss

Download PE4314B-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

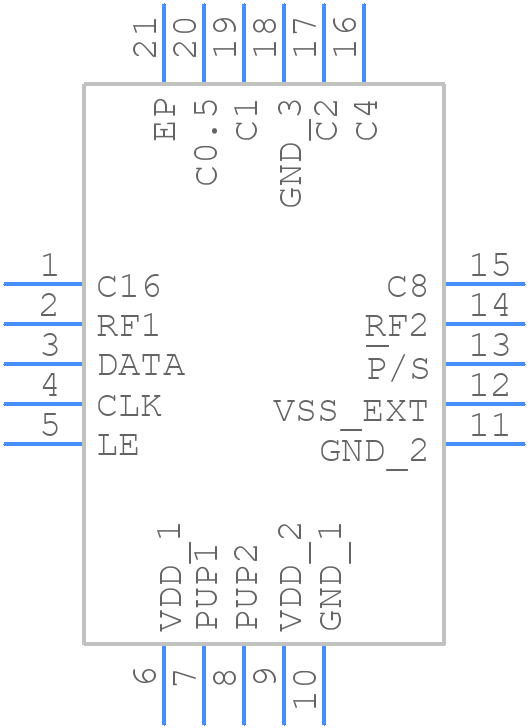

PE4314B-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE4314B-Z - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-lead 4 × 4 mm QFN
click to zoom
3D Models
PE4314B-Z - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - 20-lead 4 × 4 mm QFN
click to zoom

PE4314B-Z Details

  • Manufacturer Part Number:

    PE4314B-Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Manufacturer:

    pSemi

  • YTEOL:

    6.8

  • Additional Feature:

    I/P POWER-MAX(PULSE)=0.5W

  • Attenuation-Nom:

    31.5 dB

  • Characteristic Impedance:

    75 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23.98 dBm

  • Insertion Loss-Max:

    1.9 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

PE4314B-Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended. Ensure a low-ESR capacitor is placed close to the device for optimal decoupling.
  • Bias the device with a low-noise voltage source, and ensure the input signal is within the recommended range. A bias-T or a DC-block capacitor can be used to isolate the DC bias from the RF signal.
  • A conjugate match is recommended for optimal performance. Use a pi-network or a T-network with high-Q components to achieve a good match. Simulation tools like ADS or AWR can be used to optimize the matching network.
  • Use a low-noise voltage regulator, ensure a low-impedance power supply, and minimize the distance between the device and the bypass capacitors. A noise-reducing circuit like a pi-filter can also be used.
  • The maximum safe operating temperature is 85°C. Ensure proper thermal management and heat sinking to prevent overheating, which can affect device reliability and performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE4314B-Z Overview

Use the download button to access the PE4314B-Z schematic symbol, PCB footprint, and 3D model.
