A 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended. Ensure a low-ESR capacitor is placed close to the device for optimal decoupling.
Use the device's built-in power-saving features, such as the low-power mode, and optimize the external component selection to minimize power consumption. Additionally, consider using a low-dropout regulator to reduce power losses.
Use a pi-filter (L-C-L) or a T-filter (L-C-R-C) at the input and output to minimize EMI and ensure compliance with regulatory standards. The filter component values should be selected based on the specific application and frequency range.
Check the PCB layout for any signs of resonance or oscillation. Verify that the input and output capacitors are properly selected and placed. Ensure the device is properly decoupled and the power supply is stable. Consult the datasheet and application notes for troubleshooting guidelines.
The device has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce thermal resistance. Monitor the device temperature and adjust the thermal management accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PE43610A-X Overview

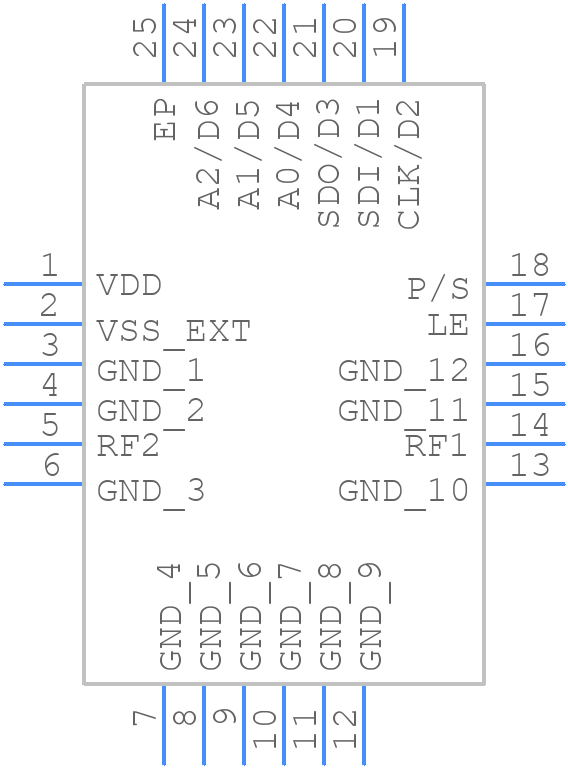

Use the download button to access the PE43610A-X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE436,
or try a keyword search, such as RF/Microwave Attenuators
