PE43704MLCA-Z - Peregrine Semiconductor

Description: UltraCMOS® RF Digital Step Attenuator, 7-bit, 31.75 dB with Optional VssEXT Bypass Mode 9 kHz - 8 GHz, 32L QFN

Download PE43704MLCA-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

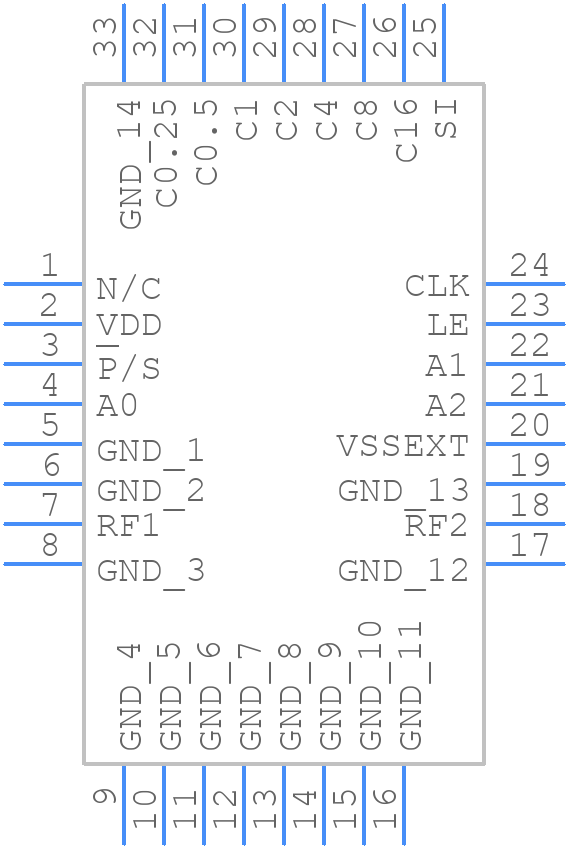

Symbol
PE43704MLCA-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE43704MLCA-Z - Peregrine Semiconductor PCB footprint - Other - Other - 32L QFN
click to zoom
3D Models
PE43704MLCA-Z - Peregrine Semiconductor - 3D model - Other - 32L QFN
click to zoom

PE43704MLCA-Z Details

  • Manufacturer Part Number:

    PE43704MLCA-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-32

  • Manufacturer:

    pSemi

  • YTEOL:

    0

  • Additional Feature:

    I/P POWER-MAX(PULSE)=1.26W

  • Attenuation-Nom:

    31 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    34 dBm

  • Insertion Loss-Max:

    3.2 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    2.5/5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Supply Current-Max:

    0.2 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

PE43704MLCA-Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use thermal pads or a heat sink for high-power applications.
  • Use a Smith chart or simulation tools like ADS or AWR to design and optimize the input and output matching networks for maximum power transfer and minimal reflections.
  • Refer to the application note or pSemi's support resources for recommended biasing and tuning settings. Typically, a voltage-controlled oscillator (VCO) is used to tune the device, and the biasing is set to optimize power and efficiency.
  • Use a shielded enclosure, ensure proper grounding, and follow good PCB layout practices to minimize EMI. Add EMI filters or shielding components as needed to meet EMC standards.
  • The device is designed to meet high-reliability standards, with a typical lifetime of 10-15 years. However, this may vary depending on operating conditions, power cycling, and environmental factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE43704MLCA-Z Overview

Use the download button to access the PE43704MLCA-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE437, or try a keyword search, such as RF/Microwave Attenuators
