A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
The PE43705A-Z requires a 3.3V power supply. Ensure the voltage regulator is stable and can provide enough current. Use a 10uF capacitor between VCC and GND, and a 100nF capacitor between VCC and AVCC.
The PE43705A-Z can operate up to 6 GHz, but the maximum frequency depends on the specific application and the quality of the PCB layout.
Use a spectrum analyzer to check the output signal. Verify the input signal is within the recommended range. Check the power supply and biasing. Use a logic analyzer to debug digital signals.
The PE43705A-Z is rated for operation up to 85°C. However, the device's performance may degrade at higher temperatures. Ensure proper heat sinking and thermal management to maintain optimal performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PE43705A-Z Overview

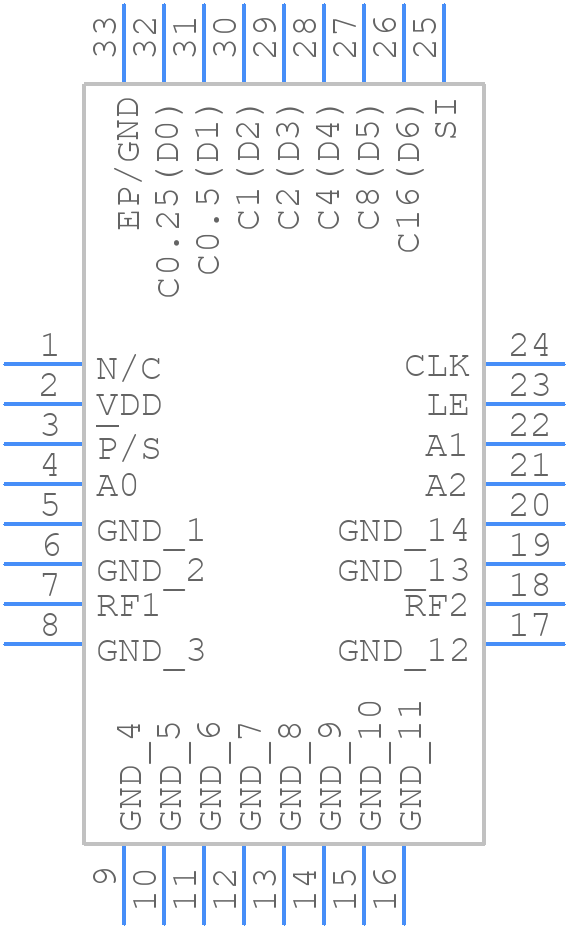

Use the download button to access the PE43705A-Z schematic symbol, PCB footprint, and 3D model.
