PE43713B-Z - Peregrine Semiconductor

Description: Attenuators 50? 7Bit 31.75dB 0.25dB, 0.5dB, 1.0dB Digital Step Attenuator, optional ext. Vss

Download PE43713B-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

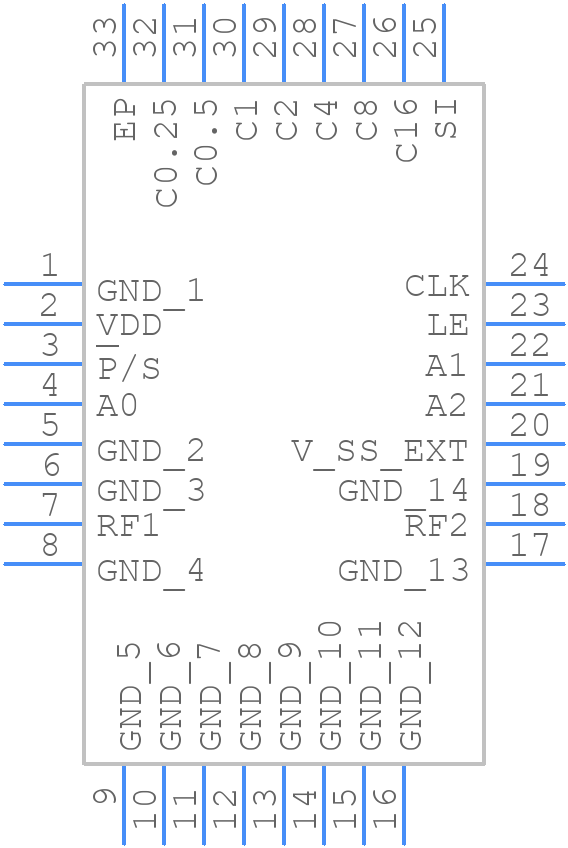

Symbol
PE43713B-Z - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE43713B-Z - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-lead 5 × 5 × 0.85 mm QFN_21
click to zoom
3D Models
PE43713B-Z - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - 32-lead 5 × 5 × 0.85 mm QFN_21
click to zoom

PE43713B-Z Details

  • Manufacturer Part Number:

    PE43713B-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Manufacturer:

    pSemi

  • YTEOL:

    6.6

  • Additional Feature:

    I/P POWER-MAX(PULSE)=0.63W

  • Attenuation-Nom:

    31 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    22.79 dBm

  • Insertion Loss-Max:

    2.8 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

PE43713B-Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a Pi-filter to reduce EMI.
  • Use a voltage regulator to maintain a stable 3.3V supply. Ensure the bias voltage (VBIAS) is set to 1.5V ± 0.1V. Use a 10kΩ resistor to connect VBIAS to the voltage regulator output.
  • The recommended input impedance is 50Ω, and the output impedance is 200Ω. Ensure the input and output matching networks are optimized for the specific application.
  • Use a low-noise amplifier (LNA) before the PE43713B-Z. Ensure the input signal is properly filtered and amplified before reaching the device. Use a high-quality, low-noise voltage regulator to power the device.
  • The maximum operating temperature for the PE43713B-Z is 85°C. Ensure proper heat sinking and thermal management to maintain a safe operating temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE43713B-Z Overview

Use the download button to access the PE43713B-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE437, or try a keyword search, such as RF/Microwave Attenuators
