Part Image

PE44333 - Pasternack

Description: 75 Ohm F Female Right Angle Connector Solder Attachment Thru Hole PCB, .320 inch x .091 inch Hole Spacing

Download PE44333 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PE44333 - Pasternack - PCB symbol
click to zoom
PCB Footprints

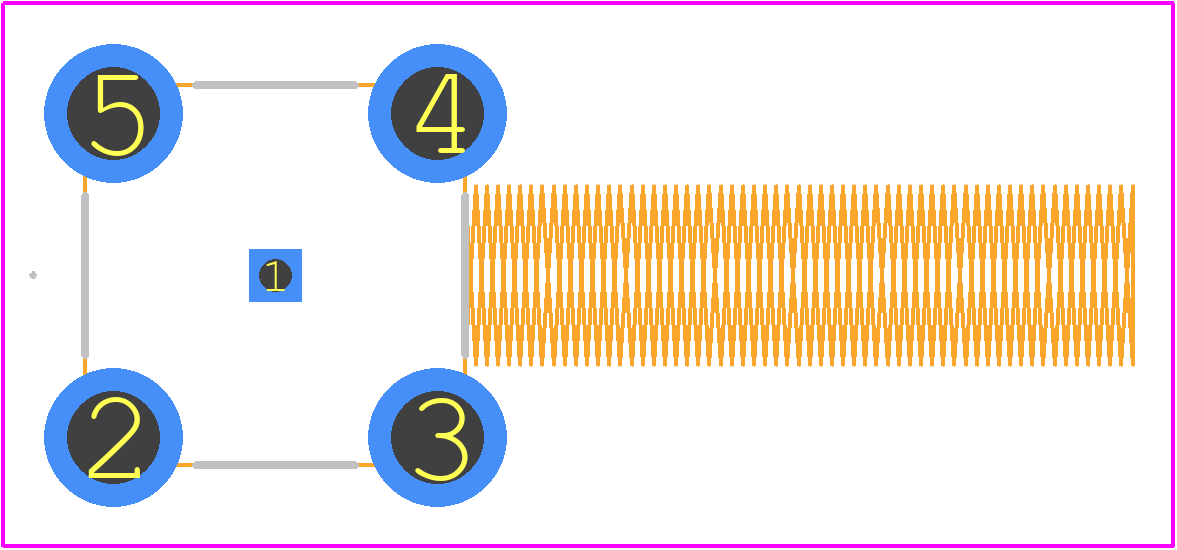

PE44333 - Pasternack PCB footprint - Other - Other - PE44333-2
click to zoom

PE44333 Details

  • Manufacturer Part Number:

    PE44333

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Pasternack Enterprises

  • Connector Type:

    RF CONNECTOR

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE44333 Overview

Use the download button to access the PE44333 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PE443, or try a keyword search, such as Other RF Connectors
