PE44398 - Pasternack

Description: N Female Right Angle Bulkhead Mount Connector Solder Attachment Thru Hole PCB, .596 inch D Hole

Download PE44398 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PE44398 - Pasternack - PCB symbol
click to zoom
PCB Footprints

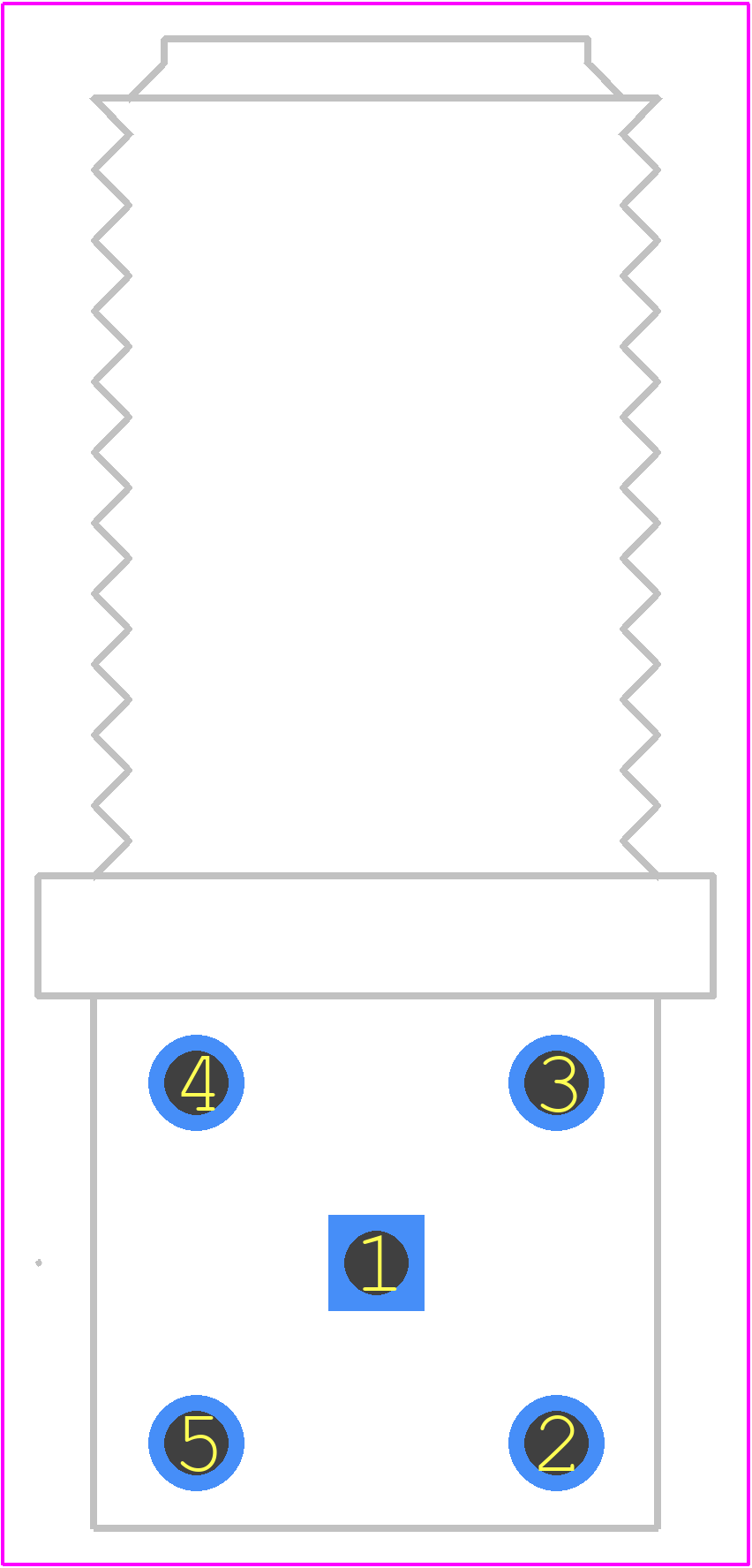

PE44398 - Pasternack PCB footprint - Other - Other - PE44398-1
click to zoom

PE44398 Details

  • Manufacturer Part Number:

    PE44398

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Pasternack Enterprises

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF N CONNECTOR

  • Contact Gender:

    FEMALE

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYTETRAFLUORO ETHYLENE

  • MIL Conformance:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Frequency-Max:

    10 GHz

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    1

PE44398 Frequently Asked Questions (FAQs)

  • The recommended torque value for the SMA connectors on PE44398 is 8-10 in-lbs (0.9-1.1 Nm).
  • Yes, PE44398 is designed to withstand high-vibration environments. However, it's recommended to follow the installation and mounting instructions provided by Pasternack Enterprises to ensure optimal performance.
  • PE44398 is designed to be compatible with standard SMA connectors and components. However, it's recommended to verify compatibility with specific components before use.
  • The operating temperature range for PE44398 is -55°C to +125°C. However, it's recommended to consult the datasheet for specific temperature-related performance characteristics.
  • Yes, Pasternack Enterprises offers customization options for PE44398. Contact their sales team or technical support to discuss specific requirements and feasibility.
