PE45450A-X - Peregrine Semiconductor

Description: RF POWER LIMITER 6GHZ 50W 12QFN

Download PE45450A-X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

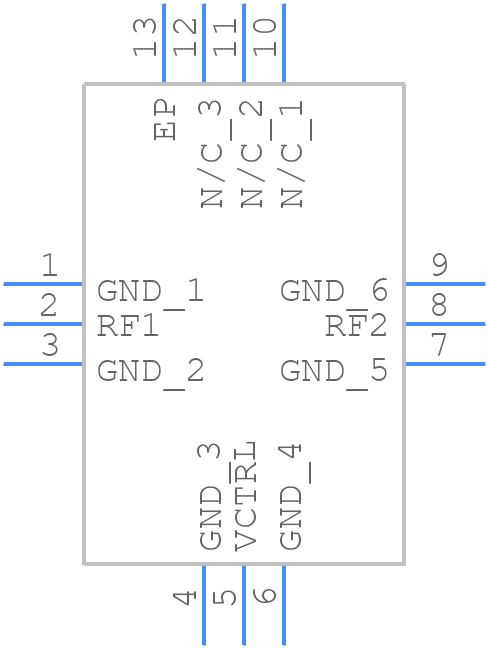

PE45450A-X - Peregrine Semiconductor - PCB symbol
click to zoom
PCB Footprints
PE45450A-X - Peregrine Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12-lead 3x3 mm QFN
click to zoom
3D Models
PE45450A-X - Peregrine Semiconductor - 3D model - Quad Flat No-Lead - 12-lead 3x3 mm QFN
click to zoom

PE45450A-X Details

  • Manufacturer Part Number:

    PE45450A-X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • Country Of Origin:

    Philippines

  • Manufacturer:

    pSemi

  • Additional Feature:

    I/P POWER-MAX(PULSE)=47DBM

  • Adjustability:

    FIXED

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    40 dBm

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    LIMITER

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.33
