- Part Number PEC11L-4115F-S0020
- Manufacturer Bourns
- Pin Count 7
- Part Category Integrated Circuit
- Package Category Other

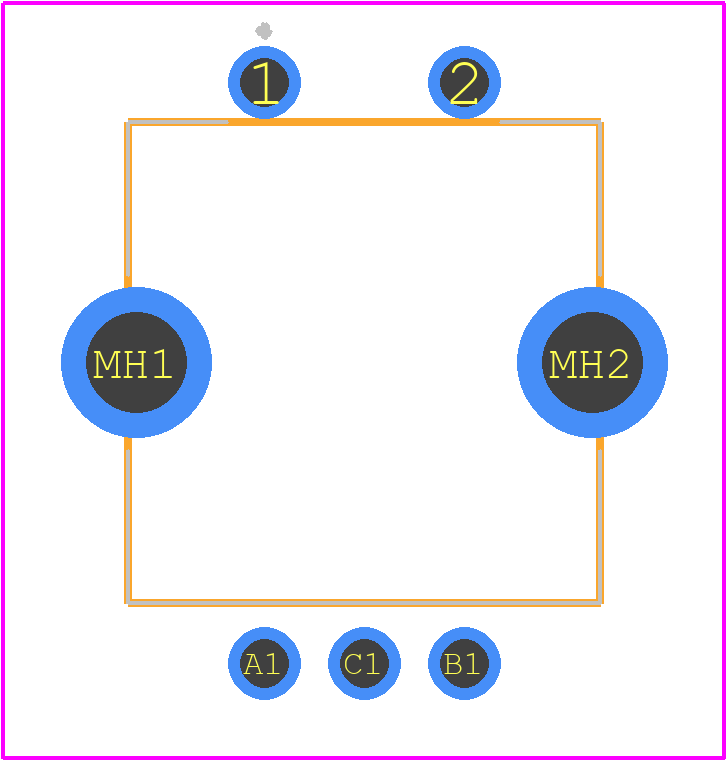

- Footprint Name Other - PEC11L-4115F-S0020
- Released Date Jul 26, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PEC11L-4115F-S0020 Details
-
Manufacturer Part Number:
PEC11L-4115F-S0020
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
Factory Lead Time:
14 Weeks
-
Manufacturer:
Bourns Inc
PEC11L-4115F-S0020 Frequently Asked Questions (FAQs)
-
The recommended PCB footprint for the PEC11L-4115F-S0020 is a rectangular pad with dimensions of 3.5mm x 2.5mm, with a 1.5mm diameter hole in the center for the pin.
-
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pad. Use a soldering technique that minimizes the risk of overheating the component.
-
The maximum operating temperature range for the PEC11L-4115F-S0020 is -40°C to 125°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
-
Yes, the PEC11L-4115F-S0020 is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB.
-
To prevent electrostatic discharge (ESD) damage, handle the PEC11L-4115F-S0020 with an ESD wrist strap or mat, and ensure that the workspace is ESD-protected. Avoid touching the component's pins or leads with bare hands.
