PEC11R-4020F-S0024 - Bourns

Description: Bourns 24 Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft (Not Indexed), Through Hole

Download PEC11R-4020F-S0024 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

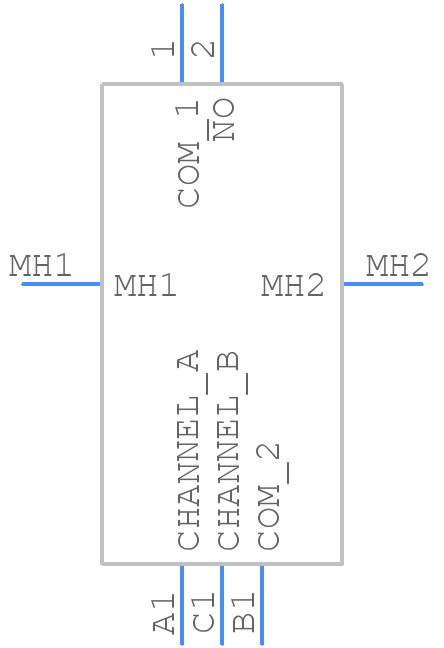

Symbol
PEC11R-4020F-S0024 - Bourns - PCB symbol
click to zoom

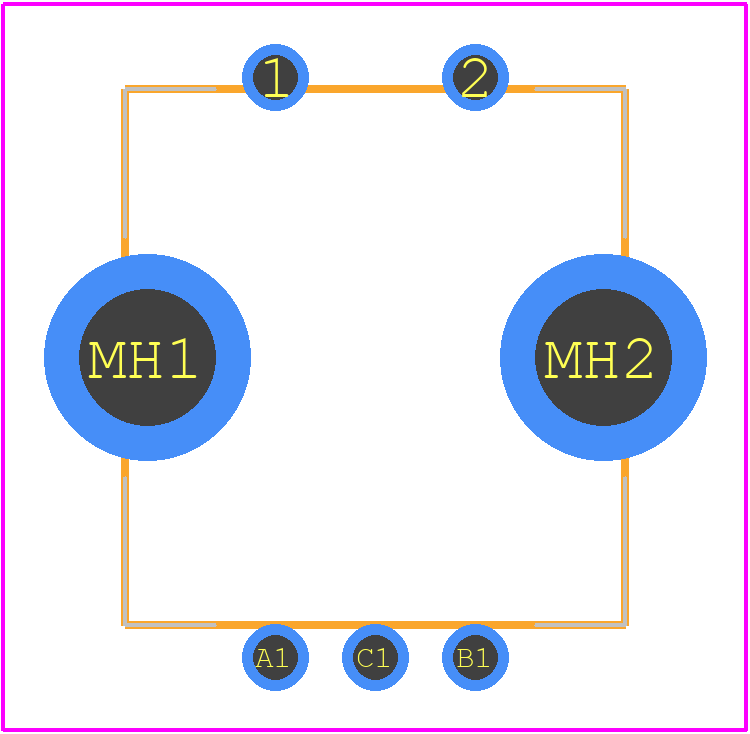

PCB Footprints
PEC11R-4020F-S0024 - Bourns PCB footprint - Other - Other - PEC11R-4220F-S0024-2
click to zoom
3D Models
PEC11R-4020F-S0024 - Bourns - 3D model - Other - PEC11R-4220F-S0024-2
click to zoom

PEC11R-4020F-S0024 Details

  • Manufacturer Part Number:

    PEC11R-4020F-S0024

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • Optoelectronic Device Type:

    ROTARY POSITION ENCODER

PEC11R-4020F-S0024 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the PEC11R-4020F-S0024 is a rectangular pad with dimensions of 4.5mm x 2.5mm, with a 1.5mm diameter hole in the center for the pin.
  • To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pads. Use a soldering technique that minimizes the risk of overheating the component.
  • The maximum operating temperature range for the PEC11R-4020F-S0024 is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
  • Handle the PEC11R-4020F-S0024 by the body of the component, avoiding touching the pins or electrical contacts. Use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
  • The recommended torque for the PEC11R-4020F-S0024 is 0.5 N·m to 1.5 N·m, depending on the specific application and mounting requirements.
