PEC11R-4120F-S0018 Frequently Asked Questions (FAQs)

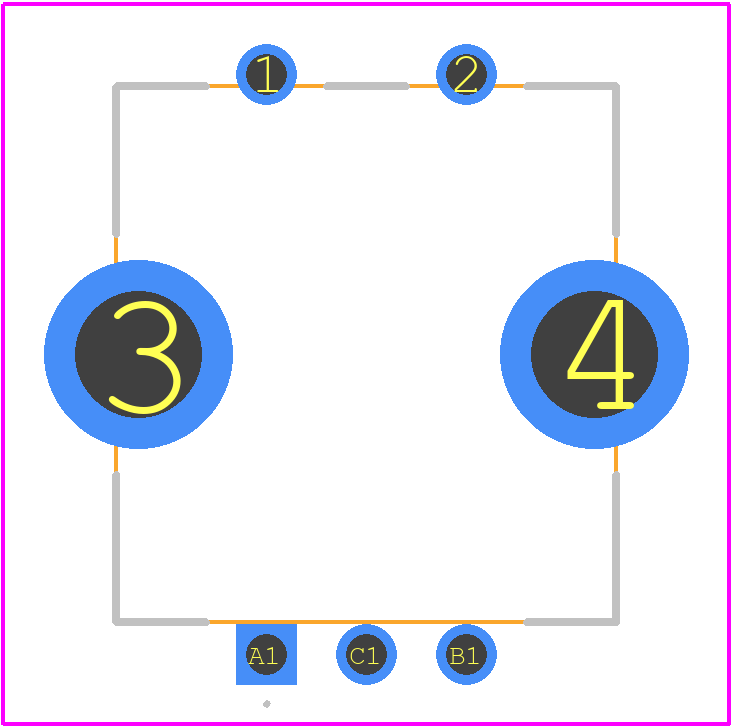

• What is the recommended PCB footprint for the PEC11R-4120F-S0018?
  The recommended PCB footprint for the PEC11R-4120F-S0018 is a rectangular pad with dimensions of 3.5mm x 2.5mm, with a 1.5mm diameter hole in the center for the pin.
• How do I ensure reliable soldering of the PEC11R-4120F-S0018?
  To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pad. Use a soldering technique that minimizes the risk of overheating the component.
• What is the maximum operating temperature range for the PEC11R-4120F-S0018?
  The maximum operating temperature range for the PEC11R-4120F-S0018 is -40°C to 125°C, as specified in the datasheet. However, it's recommended to derate the component's performance at temperatures above 85°C.
• Can I use the PEC11R-4120F-S0018 in a high-vibration environment?
  Yes, the PEC11R-4120F-S0018 is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the component remains securely attached to the PCB.
• How do I handle ESD protection when handling the PEC11R-4120F-S0018?
  To prevent ESD damage, handle the PEC11R-4120F-S0018 with ESD-protective equipment, such as wrist straps or mats. Ensure that the workspace and tools are grounded, and avoid touching the component's pins or leads.
