Bourns recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
Handle the component by the body, avoiding touching the pins or the ceramic element. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Avoid bending or flexing the component during assembly.
The PEC11R-4120K-N0018 is rated for operation from -40°C to +125°C. However, derating may be necessary for high-frequency applications or high-power dissipation.
Yes, the PEC11R-4120K-N0018 is designed to withstand vibrations up to 10 G peak acceleration. However, it's recommended to follow Bourns' guidelines for vibration testing and ensure proper PCB mounting and component securing.
Bourns recommends following the guidelines in the IEC 62133 standard for EMC testing. Additionally, ensure proper PCB layout, component placement, and shielding to minimize EMI and ensure compliance with your application's EMC requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PEC11R-4120K-N0018 Overview

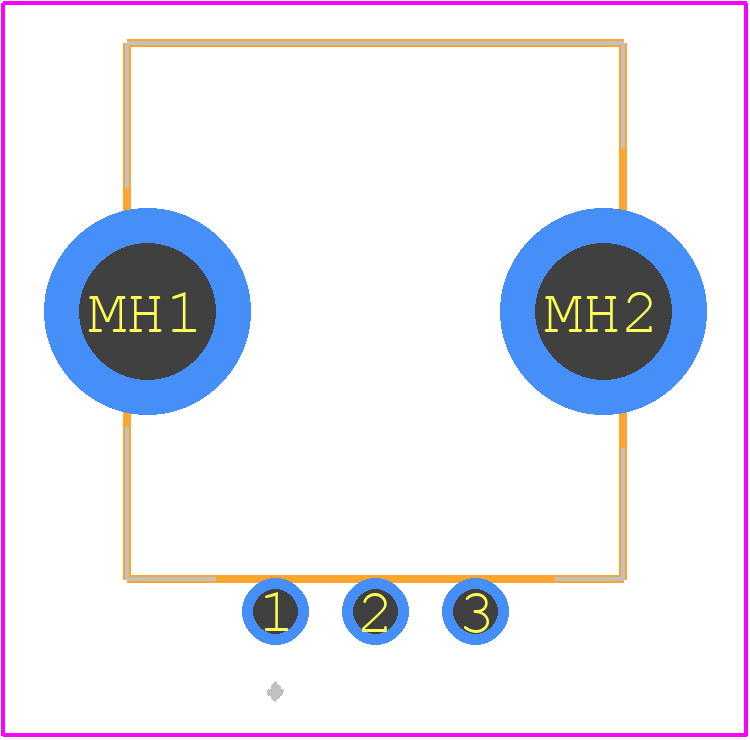

Use the download button to access the PEC11R-4120K-N0018 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PEC11,
or try a keyword search, such as Optical Position Encoders
