Bourns recommends a symmetrical PCB layout with a solid ground plane and a minimum of 0.5 mm clearance around the component to minimize electromagnetic interference (EMI) and ensure optimal performance.
Handle the component by the edges or the body, avoiding touching the pins or the ceramic body to prevent damage from electrostatic discharge (ESD). Use an ESD wrist strap or mat if possible.
The PEC11R-4330F-S0012 is rated for operation from -40°C to +125°C, but derating may be necessary for high-frequency applications or high-power handling.
Yes, the PEC11R-4330F-S0012 is designed to withstand vibrations up to 10 G peak acceleration, but it's recommended to perform additional testing and validation for specific vibration profiles.
The PEC11R-4330F-S0012 meets various regulatory requirements, including RoHS, REACH, and UL. However, it's recommended to review the component's certifications and compliance documents to ensure they meet your specific regulatory needs.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PEC11R-4330F-S0012 Overview

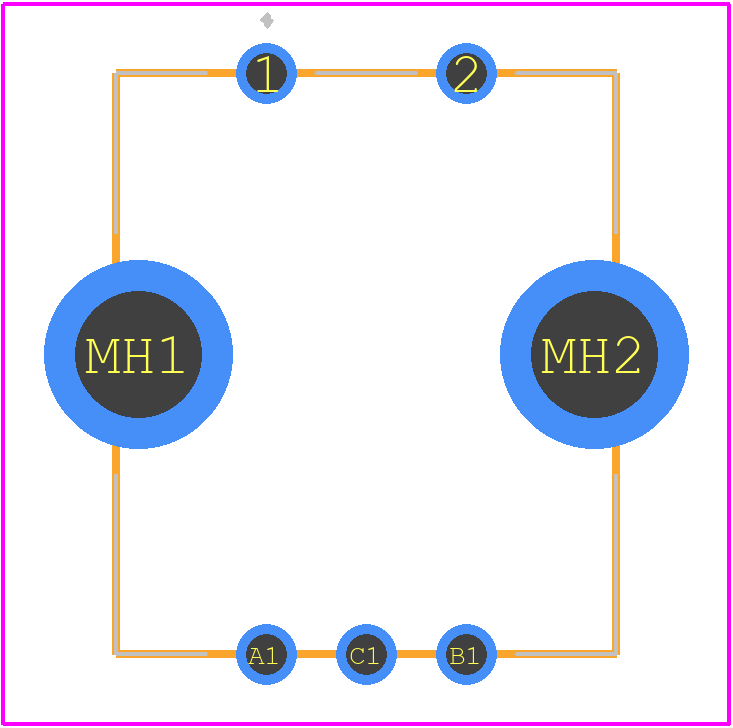

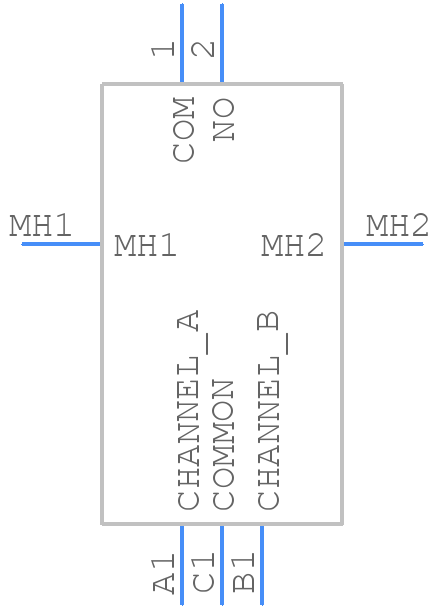

Use the download button to access the PEC11R-4330F-S0012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PEC11,
or try a keyword search, such as Optical Position Encoders
