PEC11S-929K-N0015 Frequently Asked Questions (FAQs)

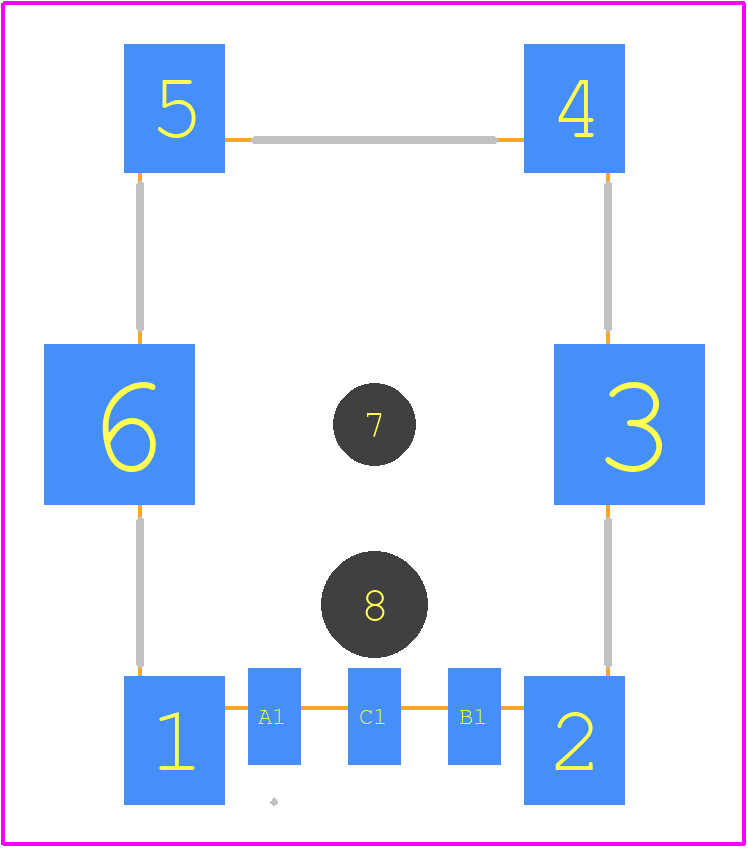

• What is the recommended PCB footprint for the PEC11S-929K-N0015?
  The recommended PCB footprint for the PEC11S-929K-N0015 is a rectangular pad with dimensions of 2.5mm x 1.25mm, with a 0.5mm radius corner. The pad should be centered on the component and have a 0.2mm clearance around the perimeter.
• How do I ensure reliable soldering of the PEC11S-929K-N0015?
  To ensure reliable soldering of the PEC11S-929K-N0015, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pad. Use a soldering technique that minimizes the risk of overheating the component.
• What is the maximum operating temperature range for the PEC11S-929K-N0015?
  The maximum operating temperature range for the PEC11S-929K-N0015 is -40°C to 125°C. However, it's recommended to operate the component within a temperature range of -20°C to 85°C for optimal performance and reliability.
• Can I use the PEC11S-929K-N0015 in a high-vibration environment?
  Yes, the PEC11S-929K-N0015 is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the component remains securely attached to the PCB.
• How do I handle the PEC11S-929K-N0015 during storage and shipping?
  Handle the PEC11S-929K-N0015 with care to avoid mechanical stress, bending, or twisting. Store the components in their original packaging or in a dry, cool place, away from direct sunlight and moisture.
