Part Image

PEC11S-929K-S0015 - Bourns

Description: PEC11S Series - 12 mm SMD Incremental Encoder.

Download PEC11S-929K-S0015 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

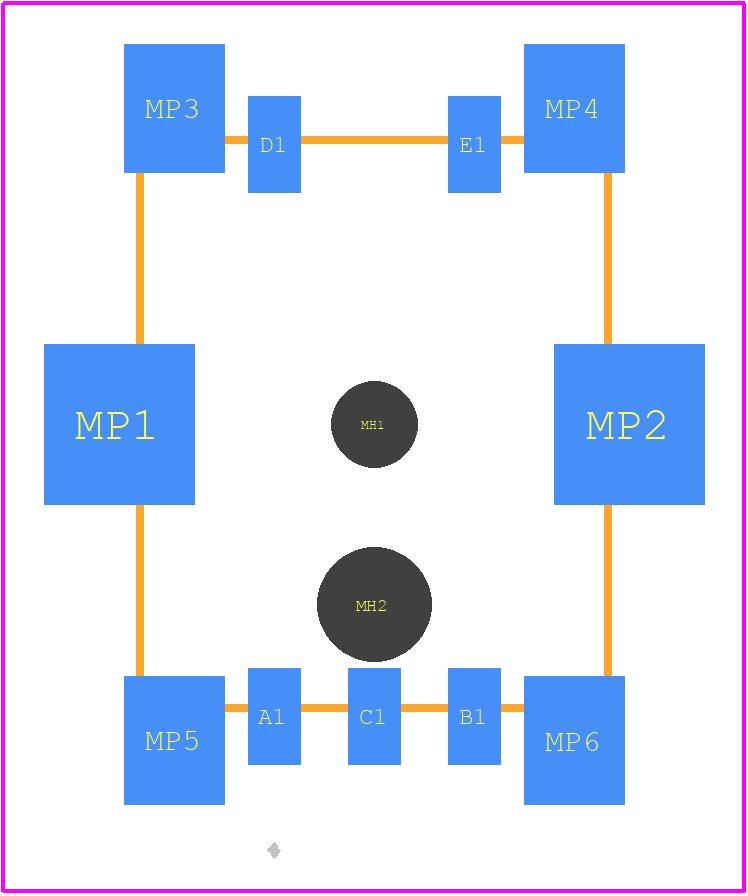

PCB Footprints
PEC11S-929K-S0015 - Bourns PCB footprint - Other - Other - PEC11S-929K-S0015-1
click to zoom
3D Models
PEC11S-929K-S0015 - Bourns  - 3D model - Other - PEC11S-929K-S0015-1
click to zoom

PEC11S-929K-S0015 Details

  • Manufacturer Part Number:

    PEC11S-929K-S0015

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-5

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • JESD-609 Code:

    e4

  • Number of Functions:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    ROTARY POSITION ENCODER

  • Terminal Finish:

    Silver (Ag)

PEC11S-929K-S0015 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the PEC11S-929K-S0015 is a rectangular pad with dimensions of 2.5mm x 1.25mm, with a 0.5mm radius corner. The pad should be centered on the component and have a minimum of 0.5mm clearance around the component body.
  • To ensure reliable soldering of the PEC11S-929K-S0015, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pad. Use a gentle touch to avoid applying excessive pressure, which can damage the component.
  • The maximum operating temperature range for the PEC11S-929K-S0015 is -40°C to 125°C. However, it's recommended to operate the component within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • Yes, the PEC11S-929K-S0015 is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the component remains securely attached to the PCB.
  • To handle ESD protection for the PEC11S-929K-S0015, use an ESD wrist strap or mat when handling the component, and ensure that the PCB and component are properly grounded. Avoid touching the component pins or PCB traces to prevent ESD damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PEC11S-929K-S0015 Overview

Use the download button to access the PEC11S-929K-S0015 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PEC11, or try a keyword search, such as Optical Position Encoders
