Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize signal loss, and reduce electromagnetic interference (EMI).
The PEC12-4225F-S0024 has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to provide adequate heat dissipation through proper PCB design, thermal vias, and heat sinks if necessary. Consult Bourns' thermal management guidelines for more information.
Bourns recommends following the IPC J-STD-020 standard for soldering and rework. The recommended soldering temperature profile is 260°C (peak temperature) with a dwell time of 10-30 seconds. It's essential to follow these guidelines to prevent damage to the component and ensure reliable solder joints.
To ensure reliability and longevity, it's essential to follow Bourns' guidelines for environmental testing, such as temperature cycling, humidity, and vibration. Additionally, consider using conformal coatings, potting, or other environmental protection methods to protect the component from moisture, dust, and other contaminants.
The PEC12-4225F-S0024 has built-in ESD protection, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. Regarding latch-up protection, Bourns recommends following their guidelines for latch-up prevention and detection to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PEC12-4225F-S0024 Overview

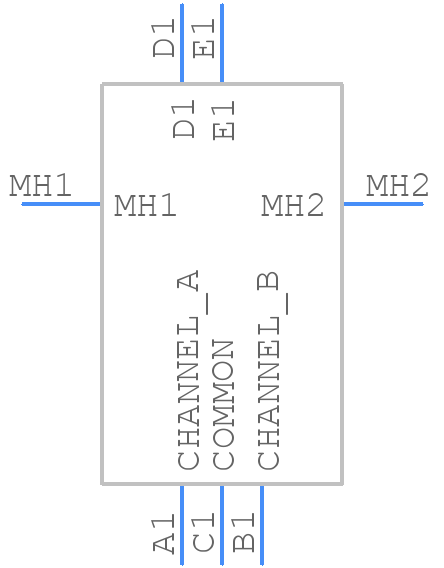

Use the download button to access the PEC12-4225F-S0024 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PEC12,
or try a keyword search, such as Optical Position Encoders
