PEC12R-2230F-S0024 - Bourns

PEC12R-2230F-S0024 Frequently Asked Questions (FAQs)

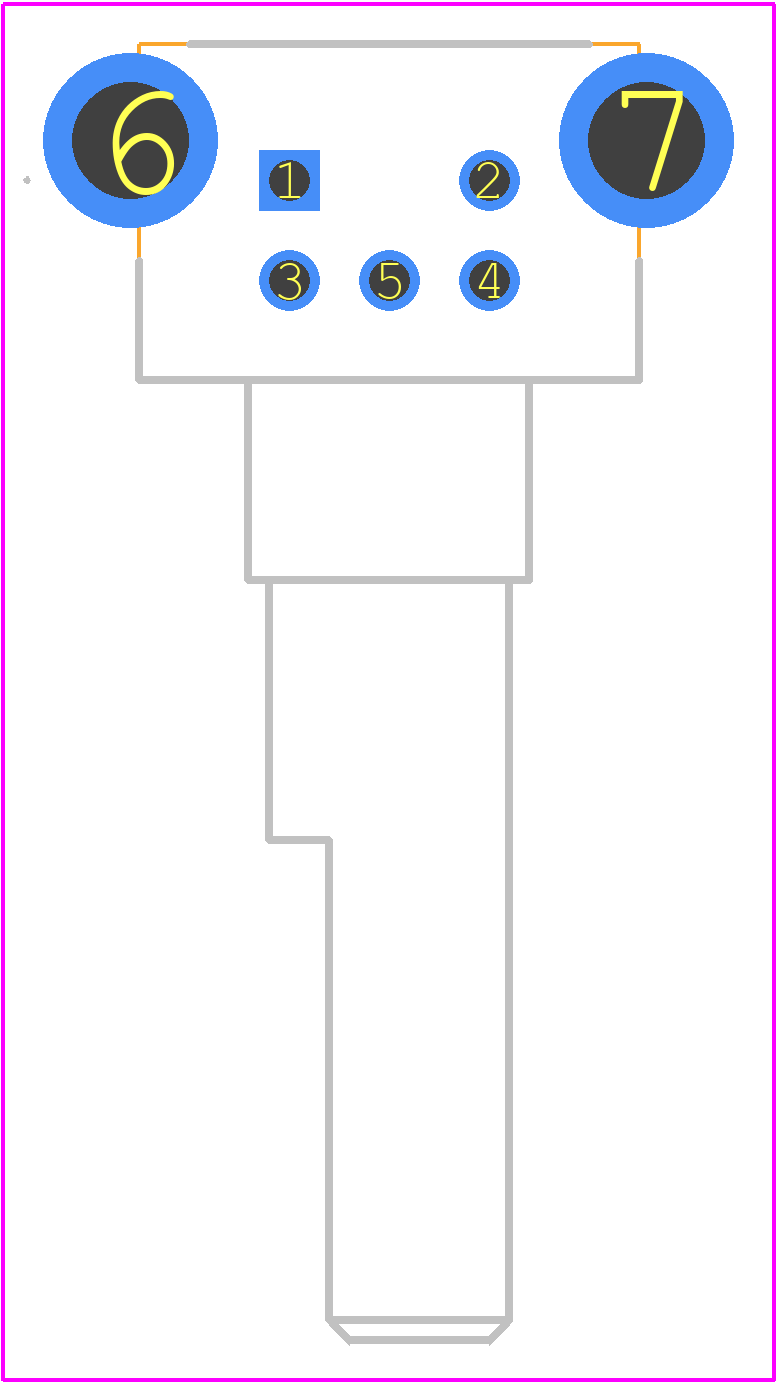

• What is the recommended land pattern for PEC12R-2230F-S0024?
  The recommended land pattern for PEC12R-2230F-S0024 can be found in the Bourns Application Note S-8151, which provides guidelines for PCB layout and land pattern design.
• Can I use PEC12R-2230F-S0024 in a high-temperature environment?
  While the PEC12R-2230F-S0024 is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable performance in high-temperature environments.
• How do I handle the ESD sensitivity of PEC12R-2230F-S0024?
  To prevent ESD damage, follow proper handling and storage procedures, such as using ESD-safe materials, grounding yourself before handling the component, and avoiding direct contact with the component's pins.
• What is the recommended soldering profile for PEC12R-2230F-S0024?
  Bourns recommends following the JEDEC J-STD-020D.1 standard for soldering profiles, which provides guidelines for temperature, time, and other parameters to ensure reliable solder joints.
• Can I use PEC12R-2230F-S0024 in a humid or moist environment?
  While the PEC12R-2230F-S0024 is designed to operate in a variety of environments, it's essential to consider the moisture sensitivity level (MSL) rating and follow proper handling and storage procedures to prevent moisture-related issues.
