PEC12R-3220F-S0024 Frequently Asked Questions (FAQs)

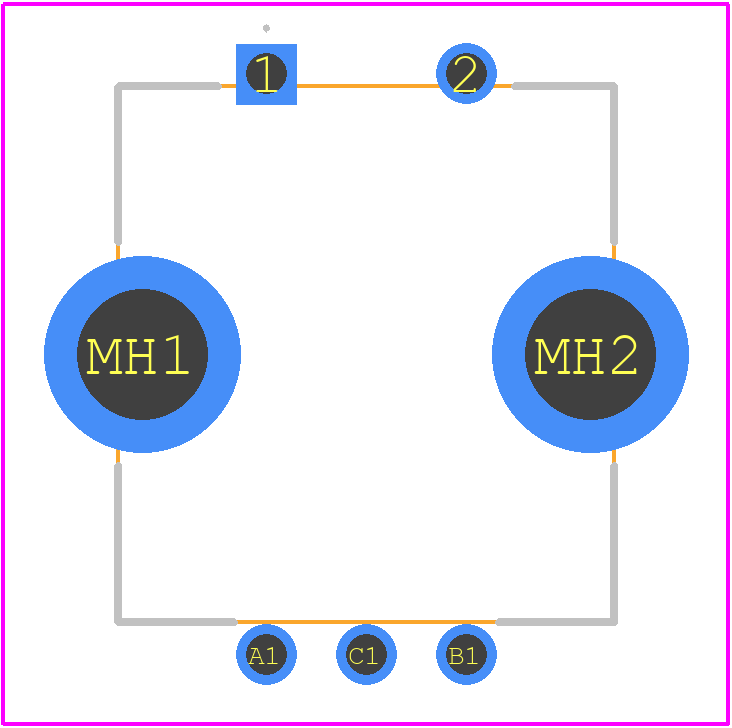

• What is the recommended PCB footprint for the PEC12R-3220F-S0024?
  The recommended PCB footprint for the PEC12R-3220F-S0024 is a rectangular pad with dimensions of 3.2mm x 2.5mm, with a 1.5mm diameter hole in the center for the pin.
• How do I ensure reliable soldering of the PEC12R-3220F-S0024?
  To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pads. Use a soldering technique that minimizes the risk of overheating the component.
• What is the maximum operating temperature range for the PEC12R-3220F-S0024?
  The maximum operating temperature range for the PEC12R-3220F-S0024 is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
• Can I use the PEC12R-3220F-S0024 in a high-vibration environment?
  Yes, the PEC12R-3220F-S0024 is designed to withstand high-vibration environments, with a vibration rating of 10G peak acceleration, 10-2000Hz frequency range.
• How do I handle ESD protection for the PEC12R-3220F-S0024?
  To handle ESD protection for the PEC12R-3220F-S0024, use ESD-safe handling and storage procedures, and consider using ESD protection devices such as TVS diodes or ESD suppressors in the circuit design.
