PEC12R-4130F-S0012 - Bourns

PEC12R-4130F-S0012 Frequently Asked Questions (FAQs)

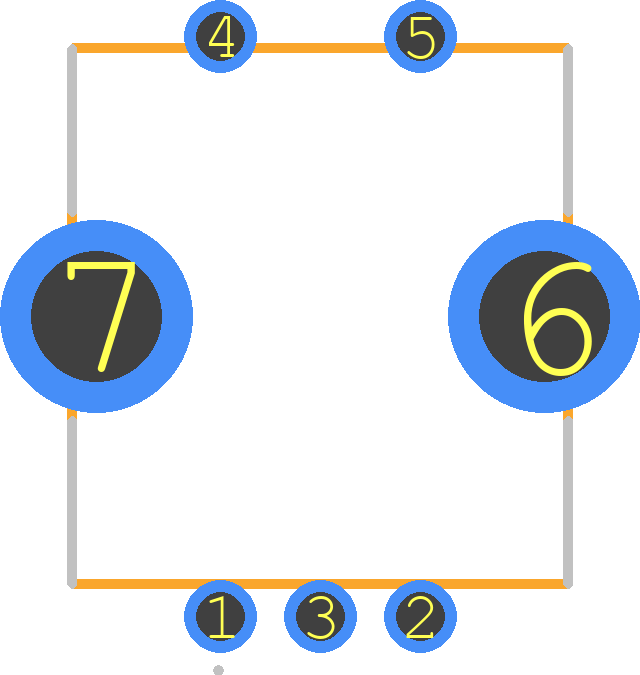

• What is the recommended PCB footprint for the PEC12R-4130F-S0012?
  The recommended PCB footprint for the PEC12R-4130F-S0012 is a rectangular pad with dimensions of 12.7 mm x 7.62 mm, with a 1.27 mm diameter hole in the center for the pin.
• How do I ensure reliable soldering of the PEC12R-4130F-S0012?
  To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pads. Use a soldering technique that minimizes the risk of overheating the component.
• What is the maximum operating temperature range for the PEC12R-4130F-S0012?
  The maximum operating temperature range for the PEC12R-4130F-S0012 is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
• Can I use the PEC12R-4130F-S0012 in a high-vibration environment?
  Yes, the PEC12R-4130F-S0012 is designed to withstand high-vibration environments, with a vibration rating of 10 G peak acceleration, 10-2000 Hz frequency range.
• How do I handle ESD protection for the PEC12R-4130F-S0012?
  To handle ESD protection for the PEC12R-4130F-S0012, use ESD-protective packaging and handling procedures, and ensure that the component is not exposed to electrostatic discharge during assembly and testing.
