PEC12R-4220F-S0012 - Bourns

Description: Bourns 12 Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft (Not Indexed), Through Hole

Download PEC12R-4220F-S0012 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

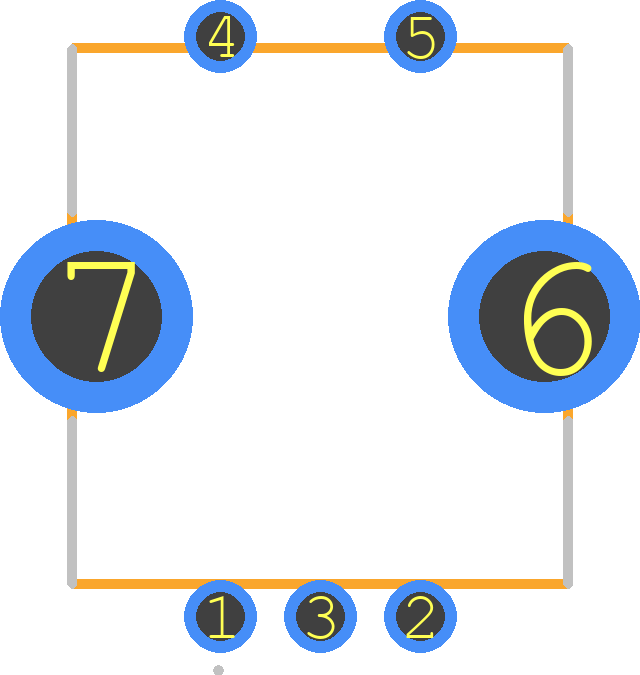

PEC12R-4220F-S0012 - Bourns PCB footprint - Other - Other - PEC12R-4XXXF-SXXXX
click to zoom
3D Models
PEC12R-4220F-S0012 - Bourns  - 3D model - Other - PEC12R-4XXXF-SXXXX
click to zoom

PEC12R-4220F-S0012 Details

  • Manufacturer Part Number:

    PEC12R-4220F-S0012

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, COMPACT PACKAGE-3

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • Configuration:

    SINGLE, 2 CHANNELS

  • Number of Functions:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    ROTARY POSITION ENCODER

PEC12R-4220F-S0012 Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
  • Handle the component by the edges to prevent damage to the sensitive electronic components. Avoid touching the component's leads or body to prevent electrostatic discharge (ESD) damage. Use an ESD wrist strap or mat if possible.
  • The PEC12R-4220F-S0012 is rated for operation from -40°C to +125°C. However, the component's performance may degrade at extreme temperatures, and it's recommended to operate within the specified temperature range for optimal performance.
  • The PEC12R-4220F-S0012 is designed to withstand moderate vibration levels. However, it's recommended to perform additional testing and analysis to ensure the component's reliability in high-vibration environments. Consider using additional mechanical support or vibration dampening measures if necessary.
  • Start by checking the component's soldering and connections for any defects or damage. Verify that the component is properly powered and that the input signals are within the specified range. Use a multimeter or oscilloscope to measure the component's output and input signals. Consult the datasheet and application notes for troubleshooting guidelines specific to the PEC12R-4220F-S0012.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PEC12R-4220F-S0012 Overview

Use the download button to access the PEC12R-4220F-S0012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PEC12, or try a keyword search, such as Optical Position Encoders
