PEC16-4015F-N0024 - Bourns

PEC16-4015F-N0024 Frequently Asked Questions (FAQs)

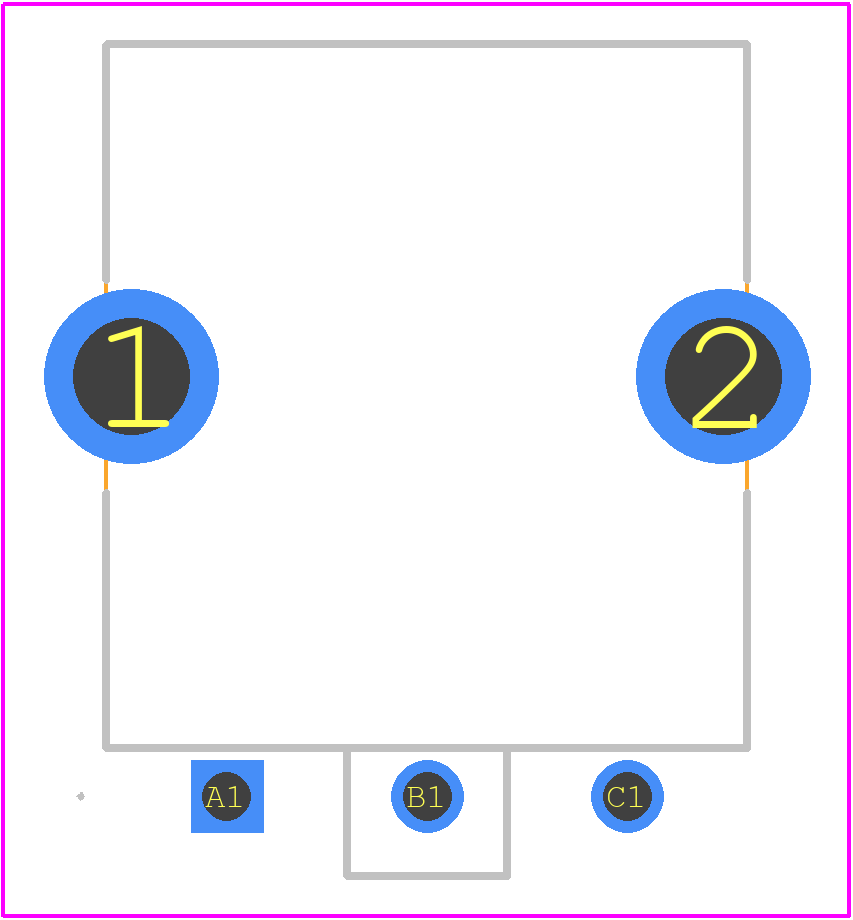

• What is the recommended PCB footprint for the PEC16-4015F-N0024?
  The recommended PCB footprint for the PEC16-4015F-N0024 is a rectangular pad with dimensions of 4.5mm x 3.5mm, with a 1.5mm diameter hole in the center for the pin.
• How do I ensure reliable soldering of the PEC16-4015F-N0024?
  To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pads. Use a soldering technique that minimizes the risk of overheating the component.
• What is the maximum operating temperature range for the PEC16-4015F-N0024?
  The maximum operating temperature range for the PEC16-4015F-N0024 is -40°C to 125°C, as specified in the datasheet.
• Can I use the PEC16-4015F-N0024 in a high-vibration environment?
  Yes, the PEC16-4015F-N0024 is designed to withstand high-vibration environments, but it's recommended to follow proper mounting and soldering techniques to ensure reliability.
• How do I handle ESD protection when working with the PEC16-4015F-N0024?
  To prevent ESD damage, handle the PEC16-4015F-N0024 with ESD-protective equipment, such as wrist straps and mats, and ensure that the PCB and components are properly grounded.
